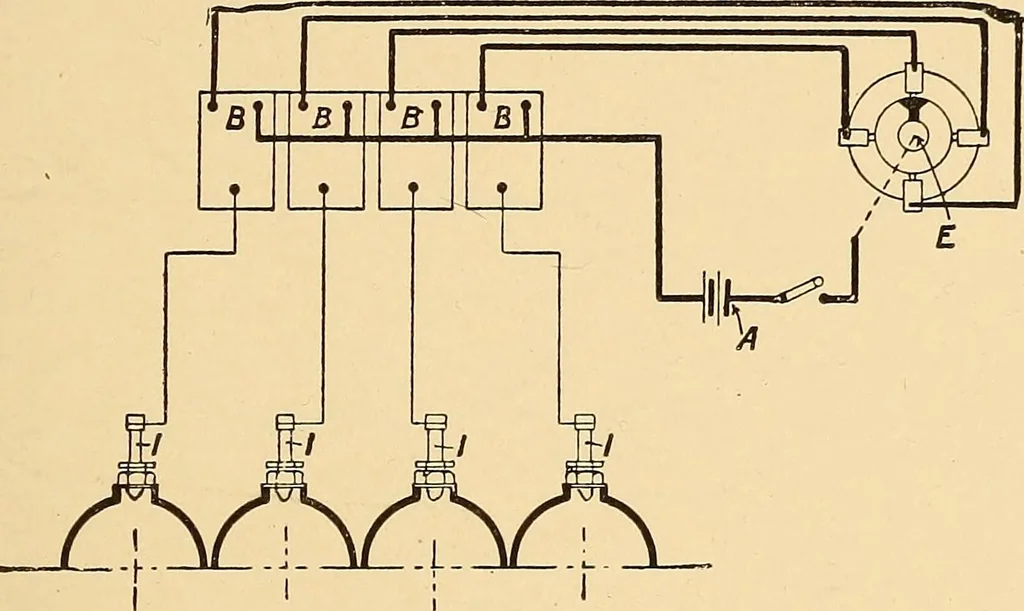

uit at right moment by bringing metal segment F againstthe brush G. H, Condenser, to make break of current sudden. I,Ignition plug in cylinder. The other end of the secondary windingis earthed. 126. High-Tension Coil Ignition.—The induction coil issupplied with a low-tension current obtained from… … Fig. 97.—Coil and accumulator Ignition, for a four-cylinder engine, withseparate coils for each cylinder. A, Accumulator. B, Coils eachwith its own condenser and contact maker. E, Commutator for dis-tributing current to the various cylinders at the right moment. /,sparking plugs. A rotating contact…
