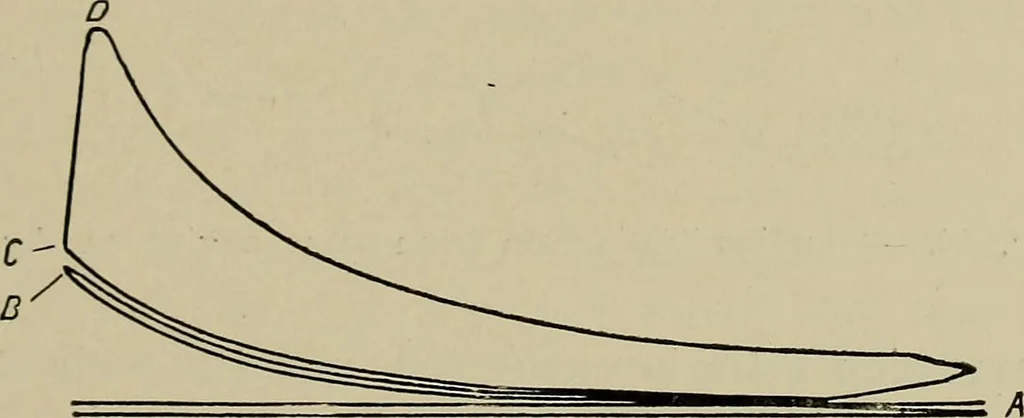

e two suction strokes a suction :diagram was taken. It is shown in Fig. 49. A suction diagramis one taken with a very weak spring and with a stop fixedabove the indicator piston to limit its rising above a pointcorresponding to about 3 lb. persq. inch. The hit and the miss suction strokes both… … Fig. 48.—Indicator Diagram, from a 25 h.p. gas engine, showing effect of Hit and-Miss Governing. atmospheric line ; this shows the very useful scavenging, orclearing out, effect of the rush of exhaust gases along theexhaust pipe. 102. Exhaust Governing.—The second of the alternativesmentioned in…
