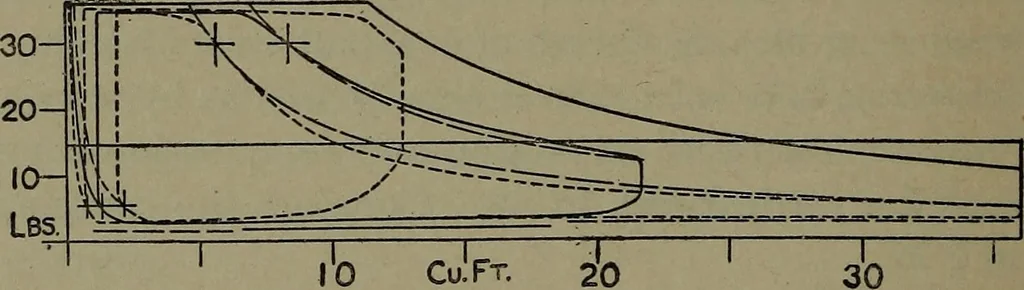

to the amount of expansion thatcan economically be carried out in one cylinder. In Fig. 92, the shrink-age of volume is more striking than-in Fig. 90. Here hyperbolas aredrawn along the expansion curves, on the two diagrams with earlier 182 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. cut-offs,… … Fig. 92. — Unit Diagrams from the Michigans Engine, Tests 1, 4, and 7. Clear-ance, 0.058; range of cut-off, 0.09 of stroke at 33 lb. abs. to 0.92 at 32 lb. sharply. The formula points agree fairly well with a horizontal straightline, as against a slightly inclined line in Fig. 87. To make Kmi…
