The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 200

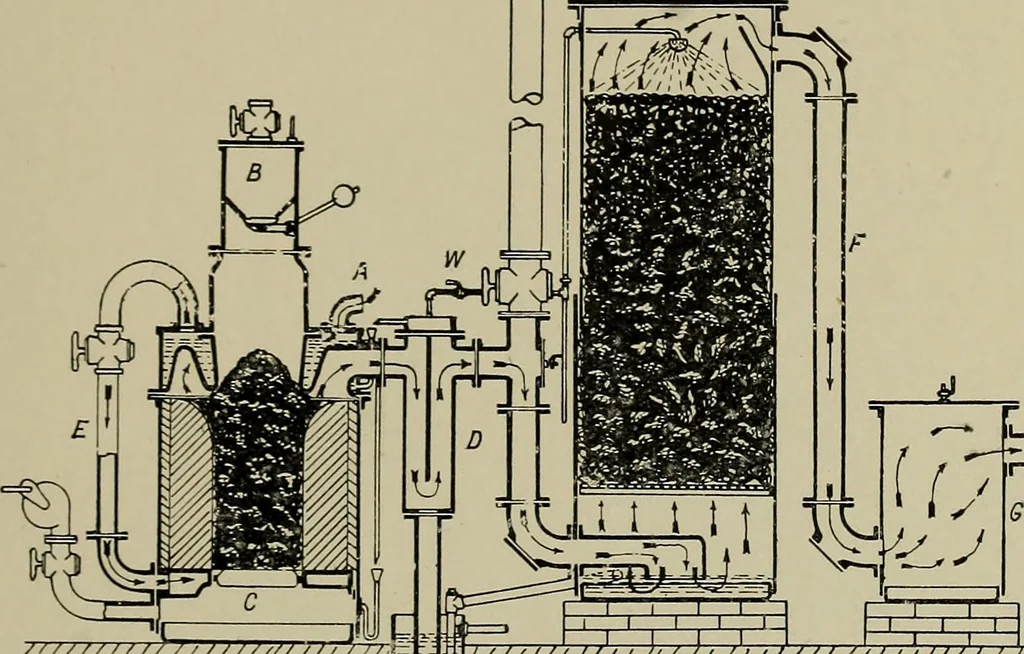

oducer, and is then drawnthrough the glowing fuel which is maintained at a temperatureof about 1,000° C. The air and steam on passing through thefurnace are decomposed in accordance with the equationsalready given, and the hot producer gas then passes througha dust trap or separator, and then past… … 2 ♦ To En gtne. /////// 777 / 7?/ 77 />//////>////V// 77777777 Fig. 56.—Sectional elevation of a 150 H.P. Campbell Suction Gas Producer,Fuel is first admitted through the hopper B. Air then enters at A,picks up steam on its way and passes by the pipe E to the grate G. Thegases come away from…
Internal combustion engines
