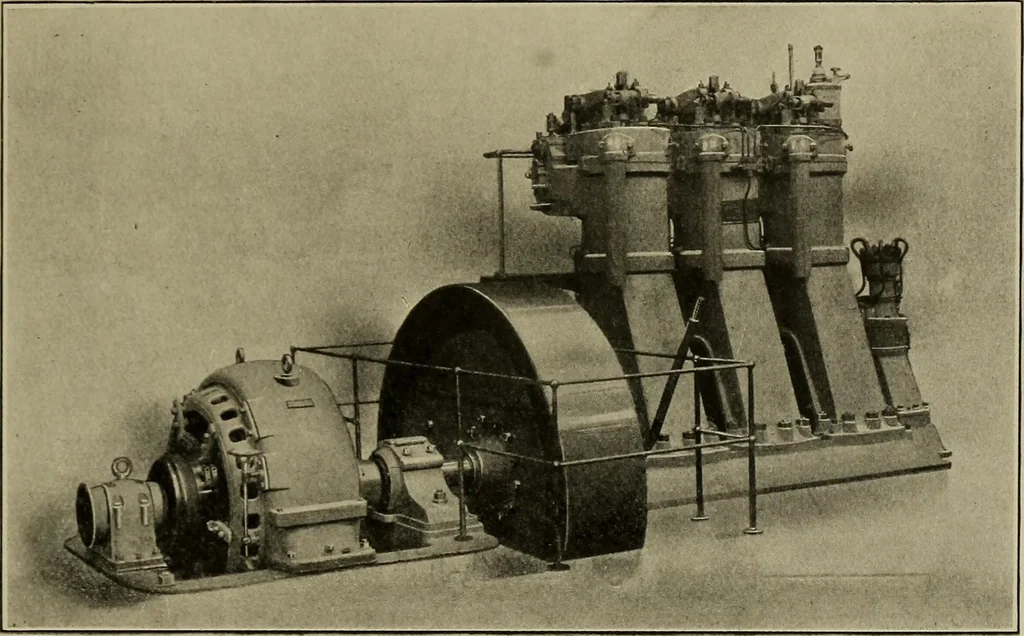

an appreciable portion ofthe outward stroke of the piston until at a given point the oilsupply is cut off and expansion takes place. Fig. 68 shows anindicator card typical of this cj^cle. In computing I.H.P.from such a card, deduction needs to be made for work donein the air-compressor. Every… … Fig. 69.—Three-cylinder Mirrlees Diesel Oil Engine coupled direct to90 K.W. Generator. For Birkdale District Electric Supply Co. inch and must not be allowed to fall below about 600 lb. persq. inch, otherwise the compression pressure in the workingcylinder would prevent the fuel entering and the…
