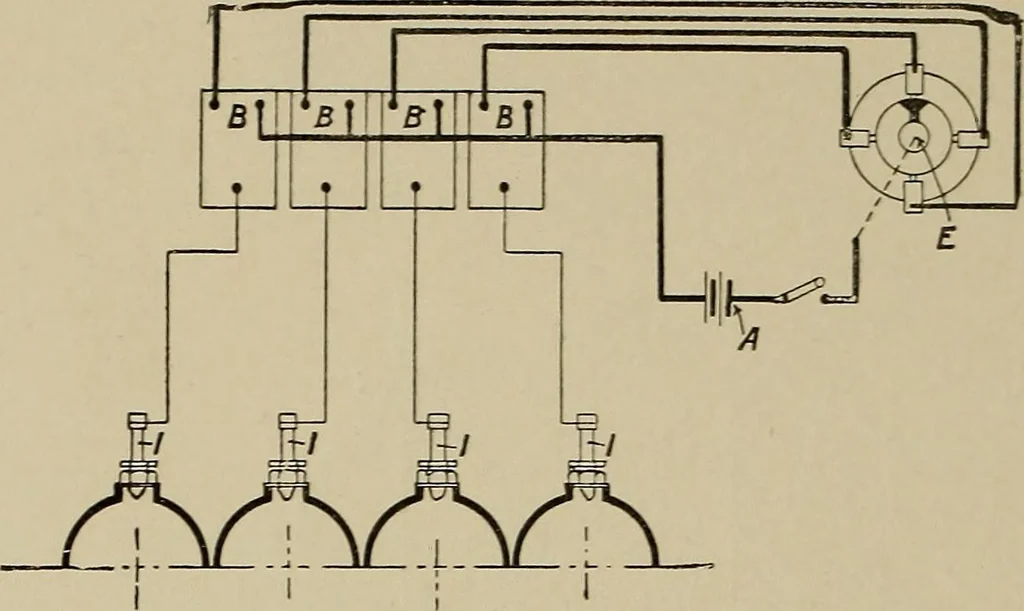

d accumu-lator. A, Accumulator. B, Induction coil.C, Contact breaker. D, Trembler. E, Com-mutator on end of cam shaft, for closingcircuit at right moment by bringing metal seg-ment F against the brush O. H, Condenser,to make break of current sudden. I, Igni-tion plug in cylinder. The other end of… … Fig. 88.—Coil and accumulator Ignition, for a four-cylinder engine, withseparate coils for each cylinder. A, Accumulator. B, Coils each withits own condenser and contact maker. E, Commutator for distributingcurrent to the various cylinders at the right moment. /, sparking plugs. made and broken by…
