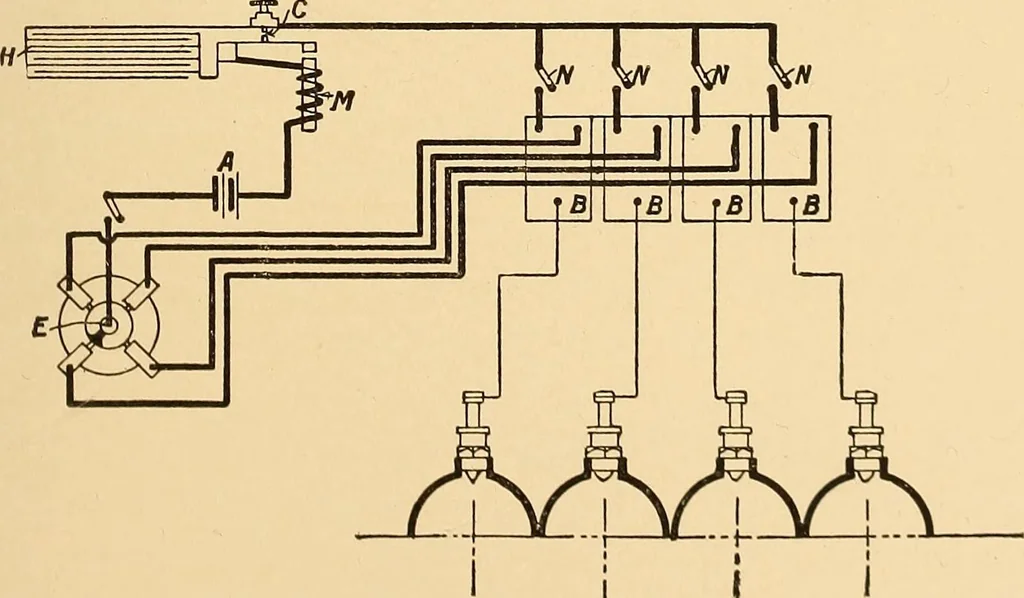

Fig. 97.—Coil and accumulator Ignition, for a four-cylinder engine, withseparate coils for each cylinder. A, Accumulator. B, Coils eachwith its own condenser and contact maker. E, Commutator for dis-tributing current to the various cylinders at the right moment. /,sparking plugs. A rotating contact… … i I l Fig. 98.—The arrangement shown in Fig. 97, except that one tremblerserves all the coils. This saves having to adjust each trembler untilall are working at same frequency. C is the common contact maker.and N are switches for cutting out coils when neeessarx. fore is this. The trembling blade…
