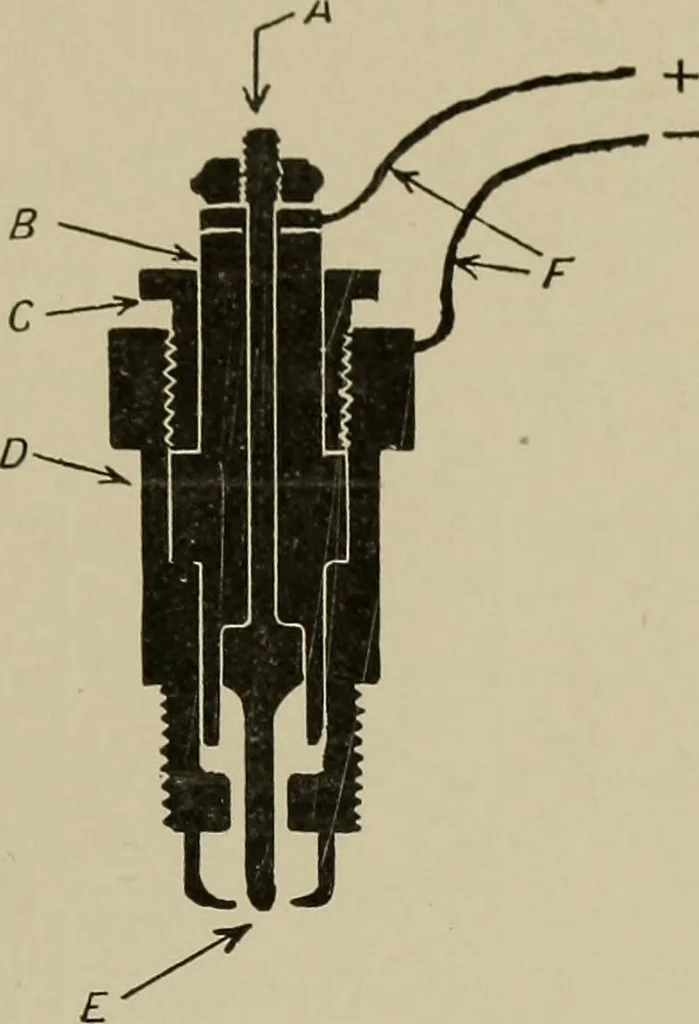

ul book, areshown of several such methods(566 87, 88, 89, and 91), and theletterpress at the foot of eachwill suffice to show their differ-ences. 162. The Lodge (Sir OliverLodge) system of ignition is justthe ordinary coil and accumulatorignition in which the high-tensioncurrent instead of being… … Fig. 90.—High Tension Spark-ing Plug. A, MetaL Rod ;B, Porcelain InsulatingSleeve ; C, Gland ; D, Bodyof Plug screwing into cylin-der; E, Sparking Points ;F, Electric Wires fromH.T. Magneto or Coil. sudden release of the electric charges on the inner coats of the Leyden jar causes such arush of…
