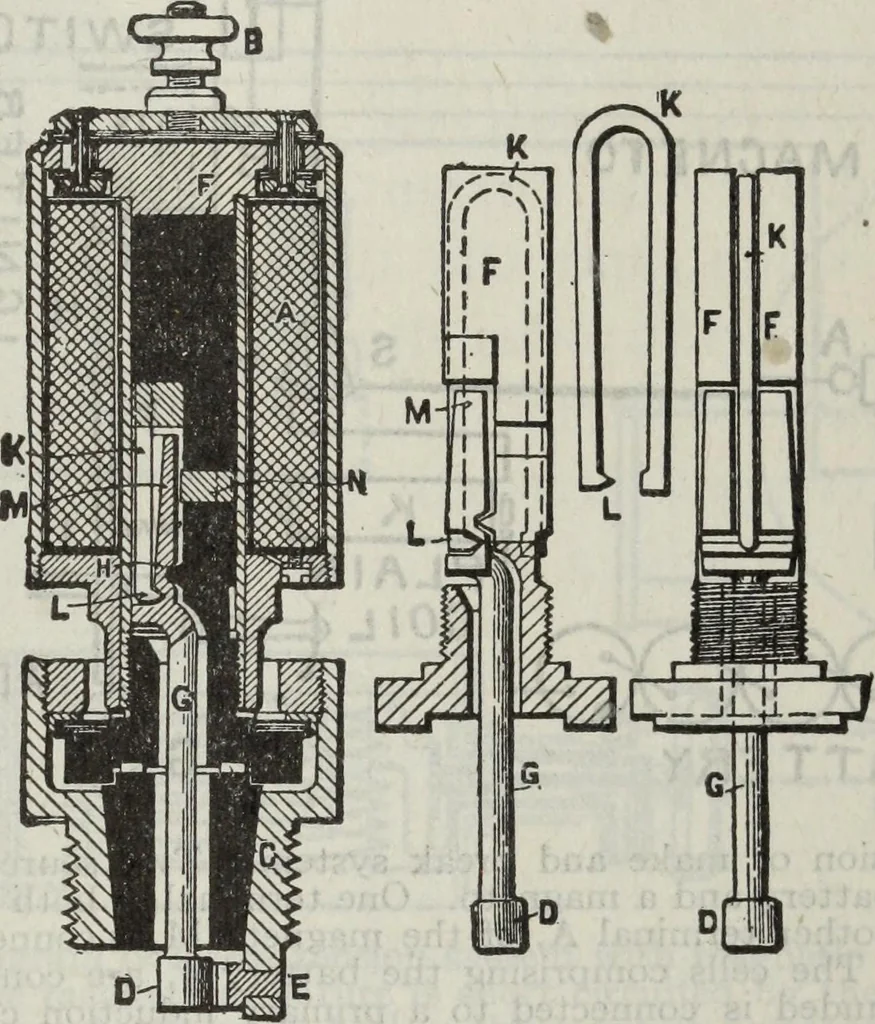

NITION 2,7G1 Low Tension Ignition.—In this system there is a deviceknown as an igniter, placed in the combustion space of theengine cylinder. This consists of two electrodes, one of whichis stationery and the other movable. The stationary electrodeis insulated, while the other, having an arm within… … Figs. 3,967 to 3,970.—Bosch magnetic spark plug. This consists of a coil A having one end con-nected to a terminal B, and the other to the plug casing C. A spark is produced when a sepa-ration takes place between the moving contact D and the stationary contact E. Withinthe plug is a metal core F…
