The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 74

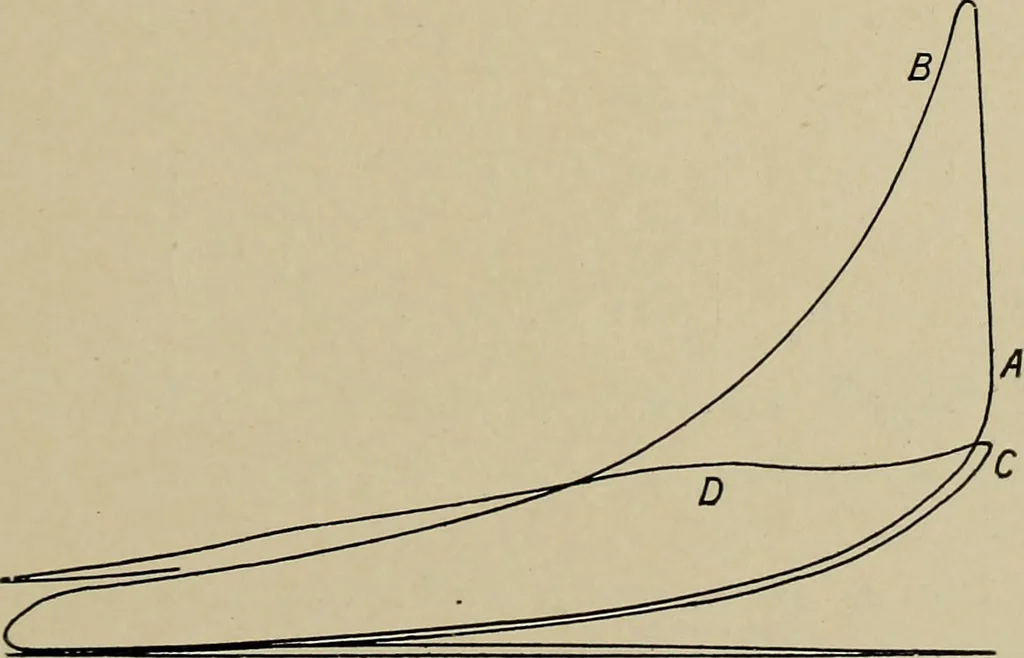

eous Explo-sions Committees figures for specific heats. 50. Time of Explosion.—In 1900 Dugald Clerk measuredthe time occupied in the explosion of coal gas and airfrom the moment of ignition to that of maximum pressure.The following were some of the times for various ratios ofair to gas. Volumes of… … Fig. 17.—Indicator diagrams showing effect of Turbulence. A B is explosioncurve when charge is fired on first compression stroke ; duration ofexplosion 0*037 second. C D is explosion when charge is fired upon thethird compression ; duration of explosion 0-092 second. rest. They may be compared with…
