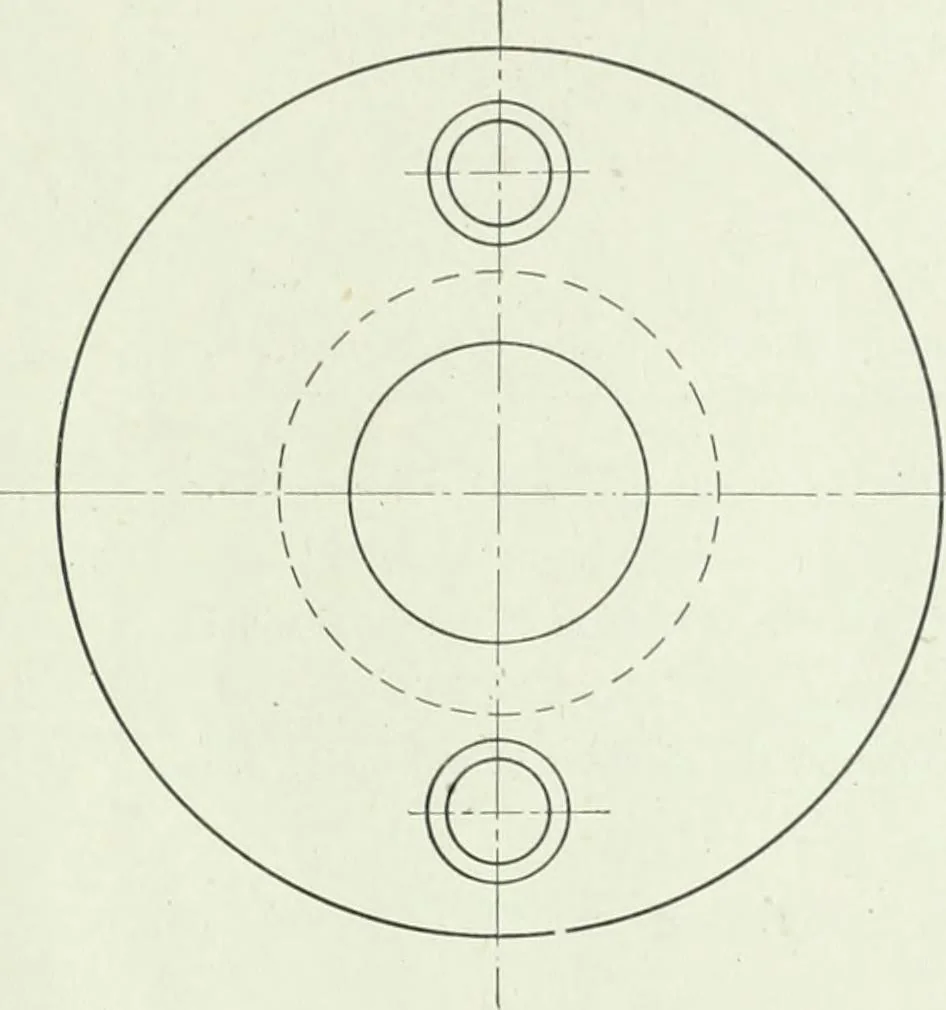

TCHING AND DRAWING Flanged Boshing Scale—Full size Draw the end elevation and complete the longitudinal section, both to scale. The l)U?hing is to be made of brass and is to be of the following dimensions:Length over all, 4 in.; diameter of flange, 4 1/8 in.; thickness of flange, 1/2 in.;outside… … -to^0 7TA F.A.O. 48 MACHINE SKETCHING AND DRAWING Drum for Wincti Scale—ly^ in. = 1 ft. Draw the two views sliowii, and also an end elevation, and a section at AB.No broken lines are necessary in this drawing. Draw the centre lines first, then (1) the end elevation, (2) the side elevation,and (3)…
