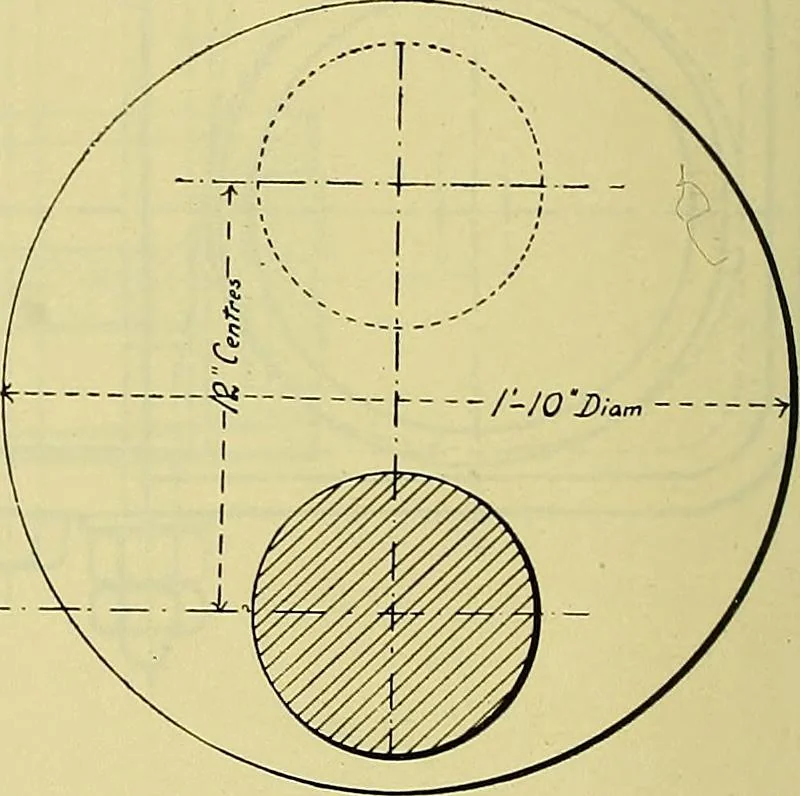

In this formula N equals the length of the con-necting rod divided by the length of the crank. Theother letters represent the same values as in formerexamples in this chapter. Let the total area of the shoe of the crosshead … Fig. 549. Fig. 550. Diameter of steel rod diam. of cylinder ^9 X \/ initial pressure. To find the pressure of the crosshead upon theguide, in pounds, the following may be used : 396000 X HP Pressure == V n—I X L X N be equal to A square inches, and let the pressureallowed upon a sq. in. be equal to…
