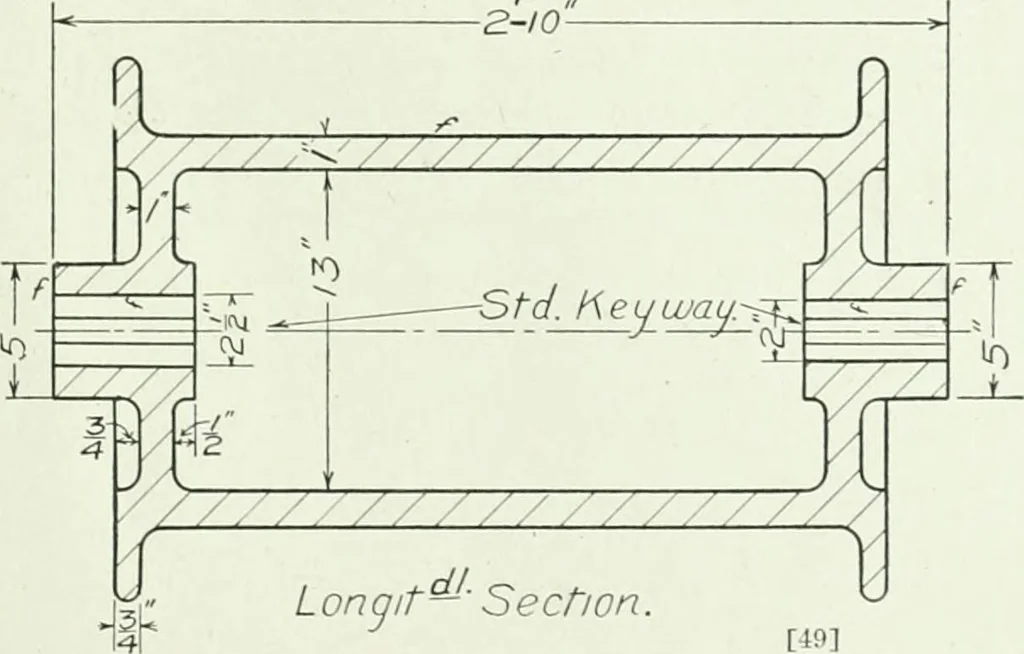

le—ly^ in. = 1 ft. Draw the two views sliowii, and also an end elevation, and a section at AB.No broken lines are necessary in this drawing. Draw the centre lines first, then (1) the end elevation, (2) the side elevation,and (3) the sections. This is a good example of the use of sections. The form… … Longit^ Section Drauu Transverse Section atA.B. Here 50 MACHINE SKETCHING AND DEAWING Stuffixg Box Gland and Bushing Scale—Full size Draw the two views to scale from the sketches shown. As always in makin;, a symmetricaldrawing, draw the centre lines first. In the section— 1. Only the new surfaces…
