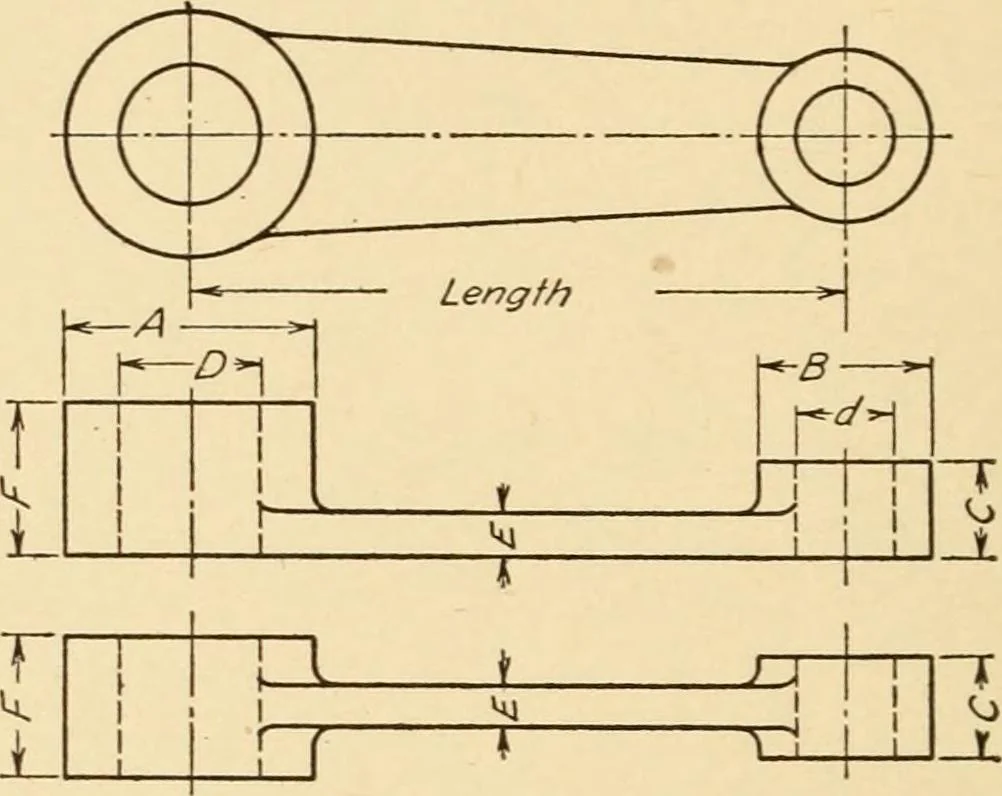

Fig. 150. Levers and Handles. The length of a lever is from center to center of holes or an equivalentdistance as illustrated. The three classes of levers are shown in Fig. 151. In each case the Shaft Le^^er of 1st Class PL, = WL2 ,. Ppull k p Ley^er of 2nd Class -Lr w PL. = WL- W -Lz- -Ap Leyer of…
