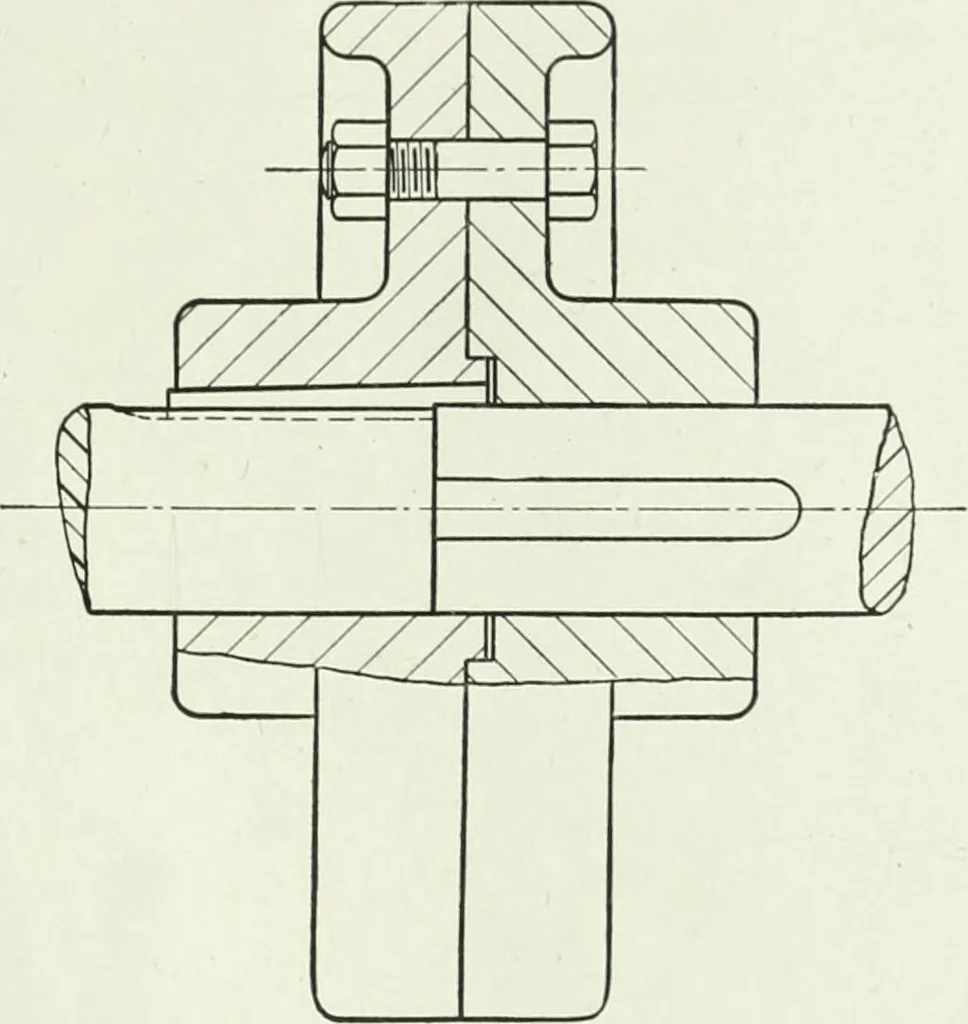

t of the shaft. In this case use the following: Diameter of shaft, 51/2 inches Diameter of flange, 32 inches Thickness of guard rim, fi/o inches Projection of guard rim, fi/o inches Thickness of flange, 2 inches Diameter of boss, 11 inches Depth of boss, 714 inches Number of bolts, 6 Diameter of… … End Elevation Here (56 MACHINE SKETCHING AND DRAWING Stuffing Box Scale—Half size Draw to scale the stuffing box for a SV^-inch shaft as shown. MACHINE SKETCHING AND DRAWING 67
