An introduction to the study of Gothic architecture (1877)
Parker, John Henry, 1806-1884 · Oxford: J. Parker and Co. · leaf 173

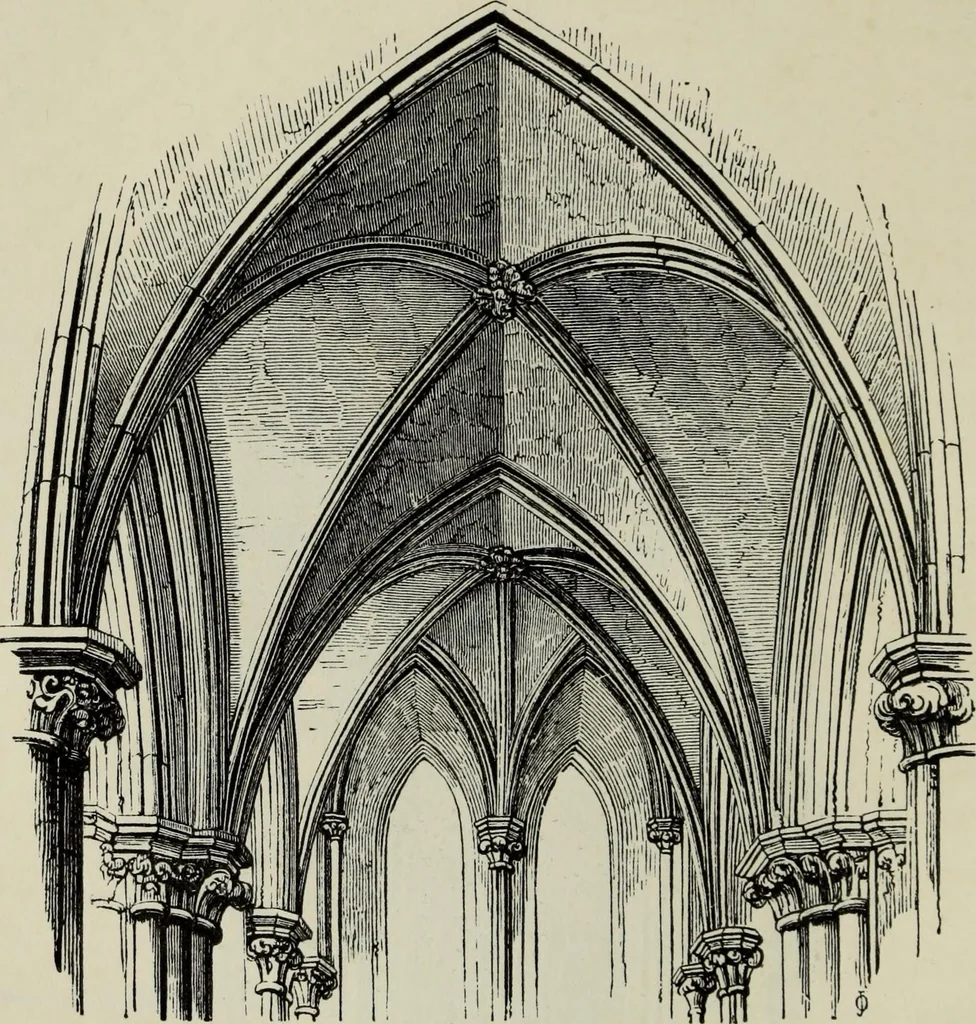

110. Barnack, Northamptonsliire, c. 1250. much enriched with mouldings and shafts of greatdepth, and the walls are ornamented on the insidewith arcades and tracery. 148 EARLY ENGLISH VAULTS. The Vaults are distinguished from the Norman bytheir greater boldness, and from succeeding stylesby their… … 111. Salisbury Cathedral, c. 1240.Early English vault, groined, with moulded ribs on the groins only. In the earlier examples there are ribs on the anglesof the groins only; at a later period the vaulting^becomes more complicated, as at Westminster. Thereis a longitudinal rib, and a cross rib along…
Architecture, Gothic
