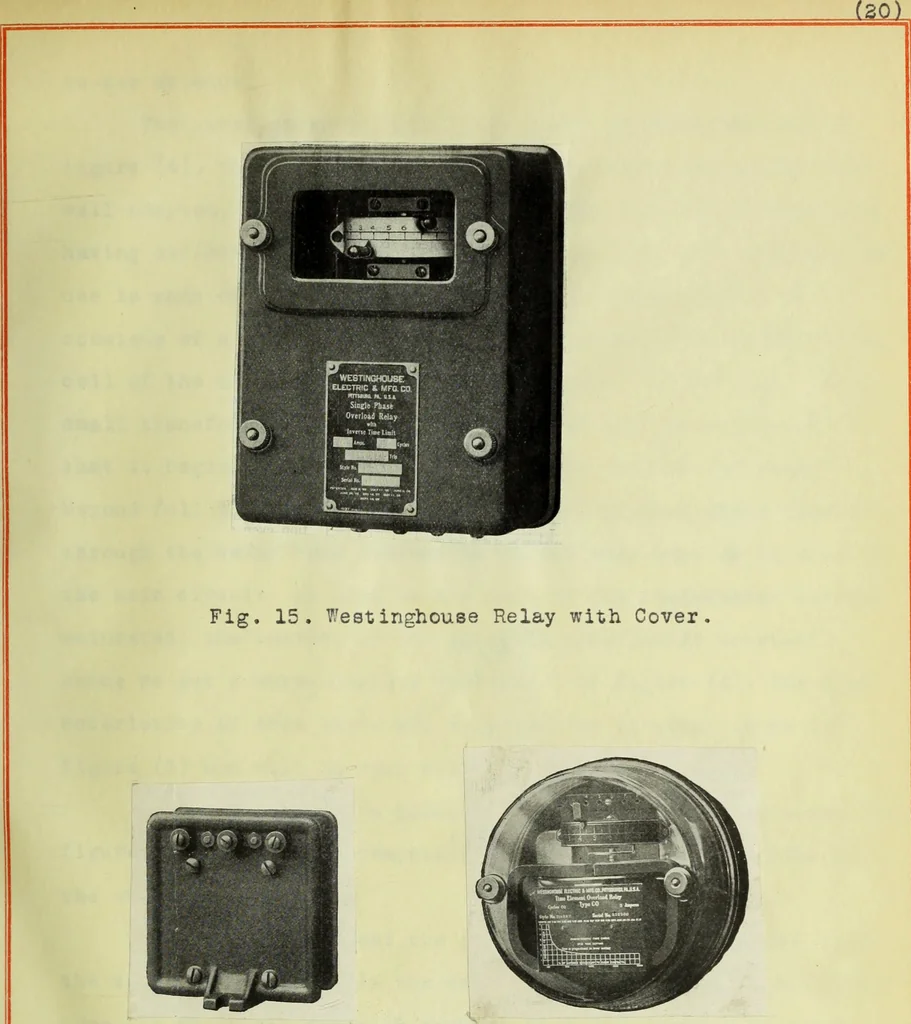

B To Current Tra«sformer TOROUECOMPENSATOR Fi . 14. Wiring of Wesfringhouse Relax• … Fig. 16. Torque Compensator. Fig. 17. Relay with Compensator, re-set at once. The curve given given by this relay is shown in curve A,figure (4). This is the pure inverse time curve and is not verywell adapted for selective work. To remedy this and give a curvehaving definite time element after 4…
