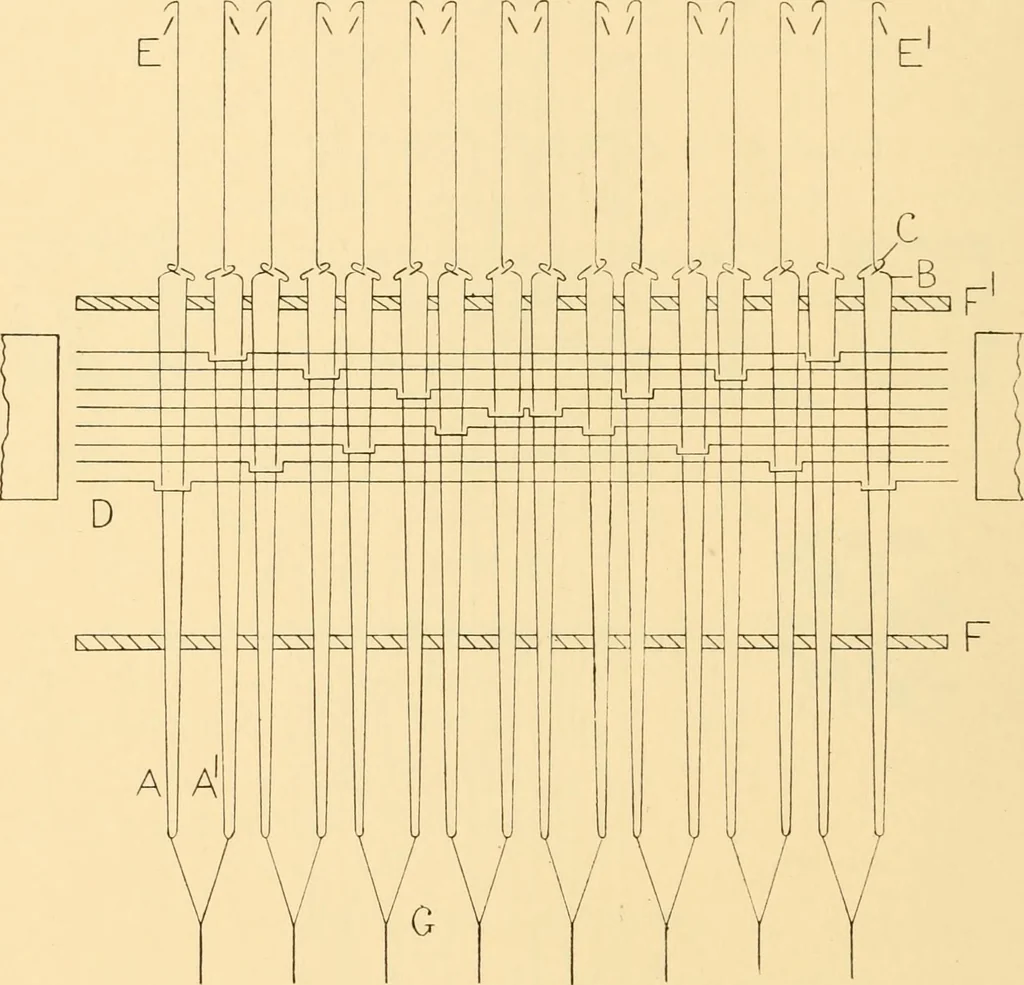

pattern card. Cylinder g has juststruck against the needles for the next shot. This card has left, intheir normal position, uprights 2, 4, 6 and 7 to be lifted by thegriffe blades immediately they commence to rise. The remaining io6 JACQUARD MECHANISM AND HARNESS MOUNTING. uprights i, 3, 5 and 8… … Wadsworths Fig. 102. Fig. 102 shows the main features and chiefpoints of difference in this machine as comparedwith the former. The uprights a, a1 are of special construction. Acrank is formed at b in the long shank of a and a loop at the top ofthe short crank at c; through this loop the long shank…
