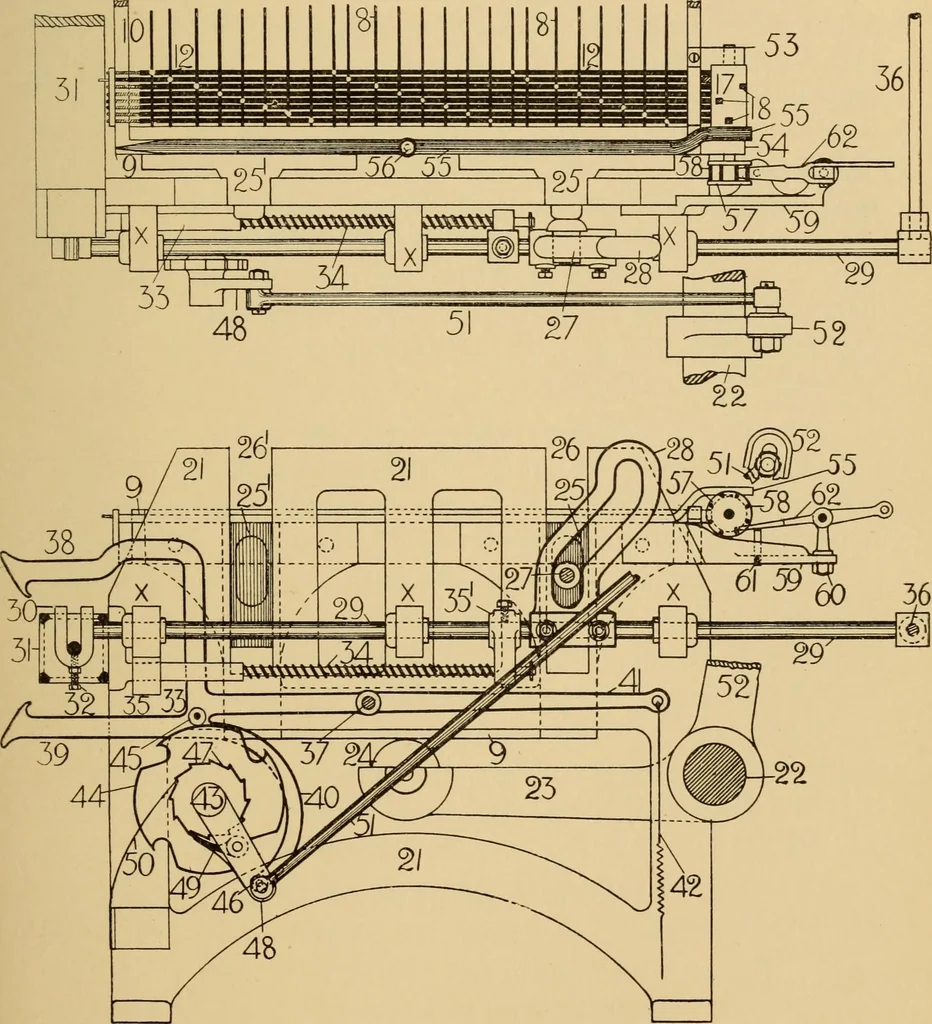

atchet tooth. The lever 48 islinked by means of an adjustable rod 51 to the lever 52 secured tothe shaft 22. TWILLING JACQUARDS. 137 TwillingCylinder. The twilling cylinder 17, Figs. 126 and 129, issupported and free to rotate between two wings ofa bracket casting 53 secured to the head 9. Oneor… … Fig. 128. I38 JACQUARD MECHANISM AND HARNESS MOUNTING. of which rests the free arm of a long flat steel spring 55, secured tothe head 9 at 56. This spring is to prevent the twilling cylinderfrom rotating too far whenever motion is imparted to it. Also compounded with the end of the twilling…
