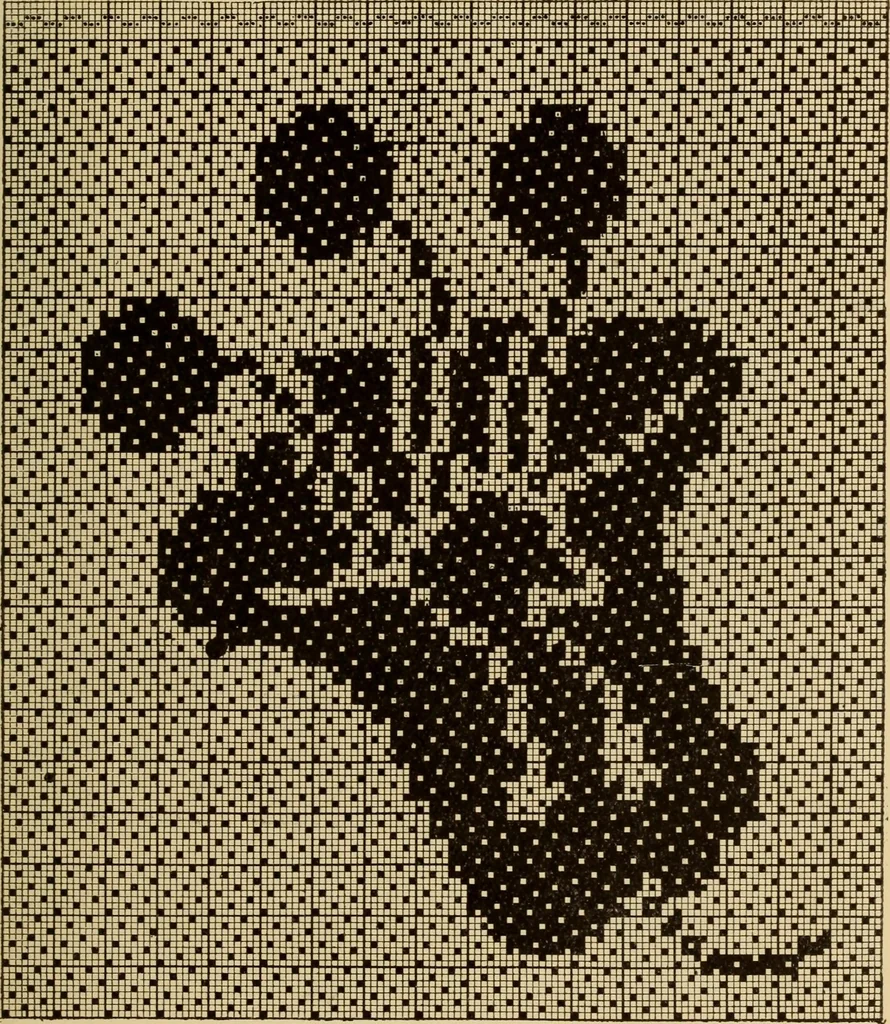

Fig. 151. First, the binding twill produced by a twilling machine always runs in the same direction for a given direction of harness tie, both in the ground and figure. This limitation makes it impossible to obtain a perfect and minute definition of outline of ground and TWILLING JACQUARDS. 157… … Fig. 152. woven with three hooks to each needle, simultaneously and auto-matically bound by the twilling mechanism. The binding twillruns the same way in both the ground and figure, and at few pointson the outline does the warp stitch cut cleanly that of the weft. i58 JACQUARD MECHANISM AND HARNESS…
