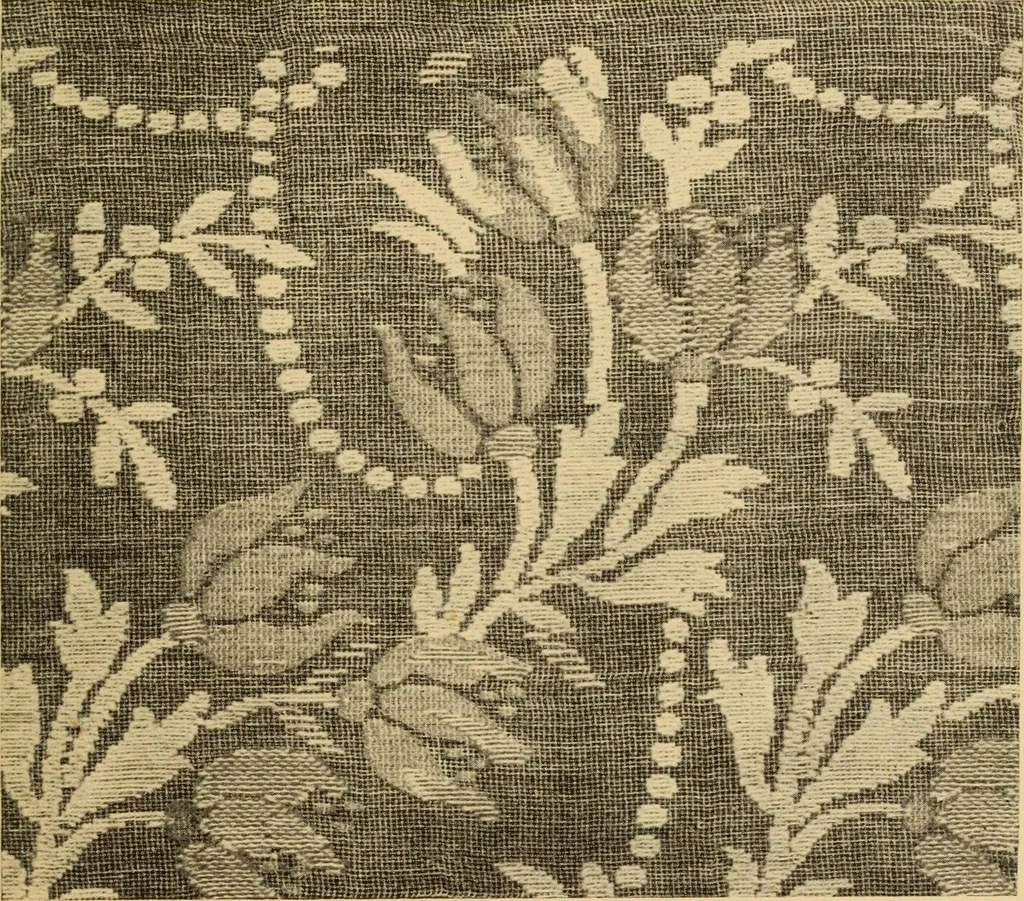

JACQUARD. 211 Fig. 204 is an enlarged plan view of a figured Madras muslinwoven with only one figuring weft and Fig. 205 is a similar view ofa second fabric woven with tivo coloured figuring wefts. Fig. 206 is a transverse section through the weft of the former.a represents the gauze warp threads ;… … Fig. 203. Fig. 207 is a sectional elevation of the web, reeds, harness andlease rods when the figuring shed is formed. Fig. 208 shows the same details when the gauze or ground shedis formed, f indicates the lease rods ; g the harness mails andlingoes ; h a tug reed, 5 deep, free to move laterally ;…
