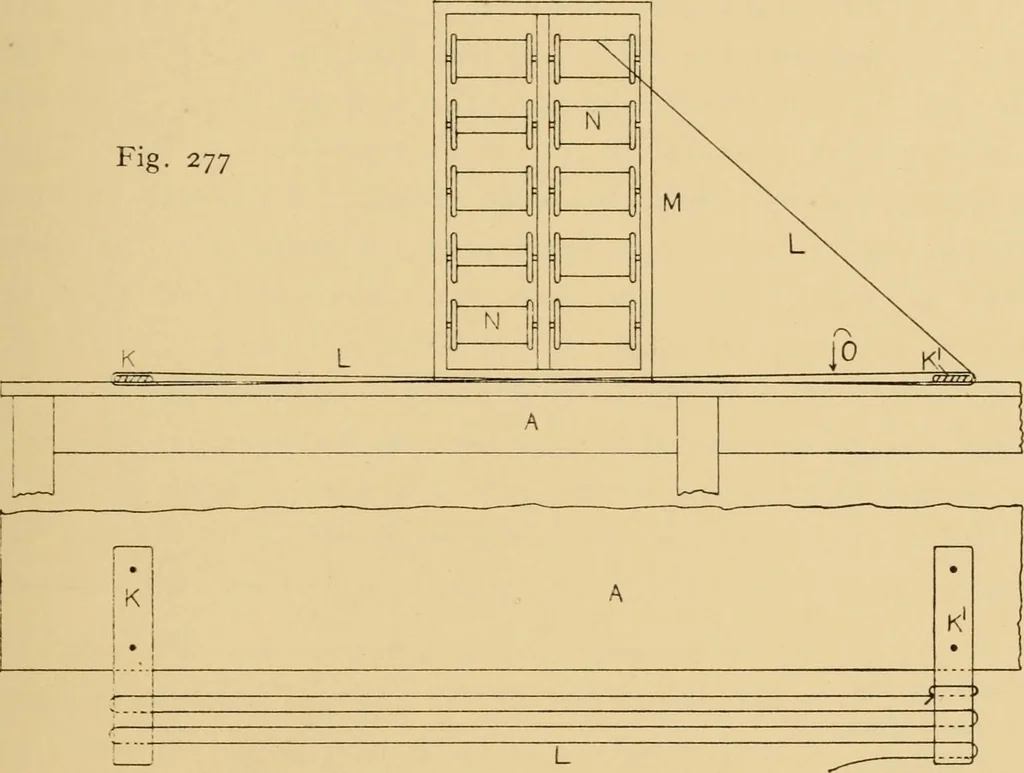

INCIPLES AND ROUTINE OF HARNESS MOUNTING. 265 When there are several twines connected to the same tug cord,they are usually interlaced by a fine cord, a few inches below thetugs to form a flat surface and keep them in their normal position. When all the harness twines have been knotted to the… … Fig. 278 few days, so as to stretch the twines and accustom them to thesurrounding atmospheric conditions, before proceeding with thelevelling operation. Fig. 279 shows in elevation, and 280 a plan ofLevelling the ., . . „. . , Harne B 1 arrangement for levelling the harness, when the Board. ^g nas…
