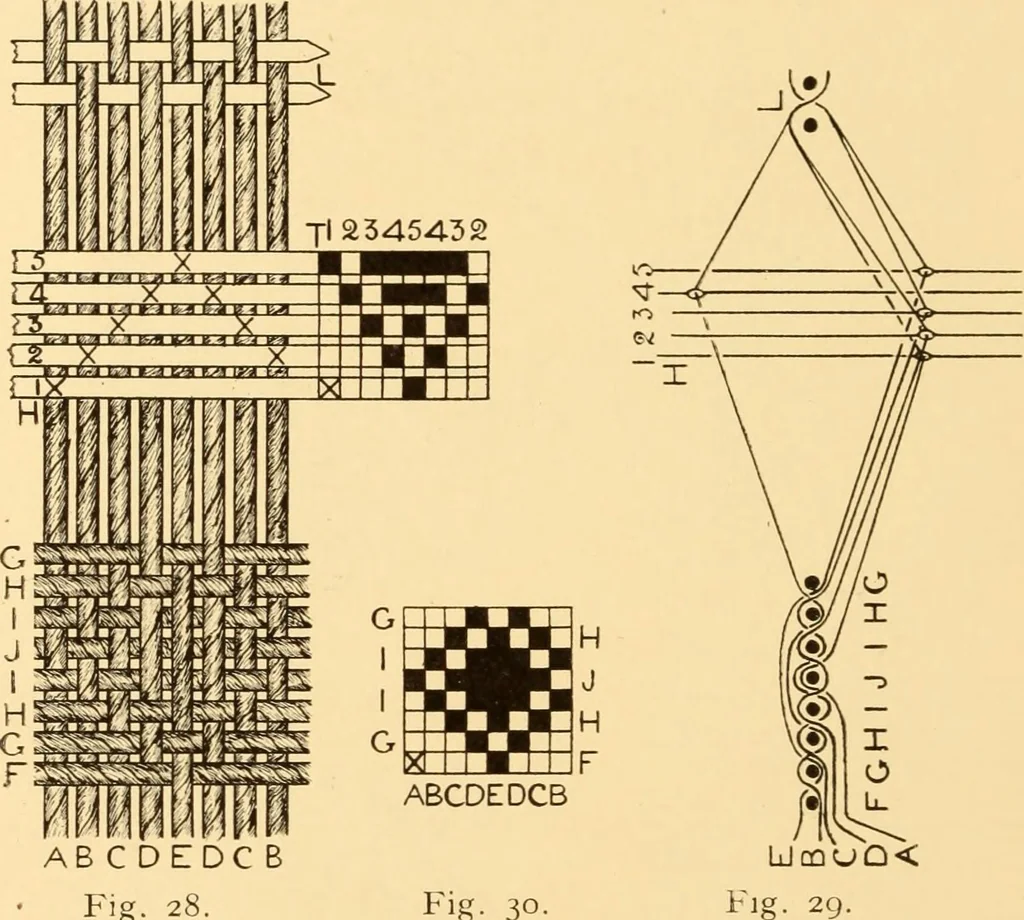

this pattern is made with one shot of weft in eachshed. 24 JACQUARD MECHANISM AND HARNESS MOUNTING. Figs. 25, 26 and 27 are respectively a plan, section and pointpaper design, showing a modification of the foregoing structurewhere the pattern is produced with the same heddles and draft, buttramped… … AB C DEDC B Fig. 28. Fig. 30 Figs. 28, 29 and 30 show the plan, section and point paperdesign respectively of another type of modification, composed oftight and loose interlacings, which the predetermined design com-bines to produce an effect corresponding to the honey-comb, fromwhich the pattern…
