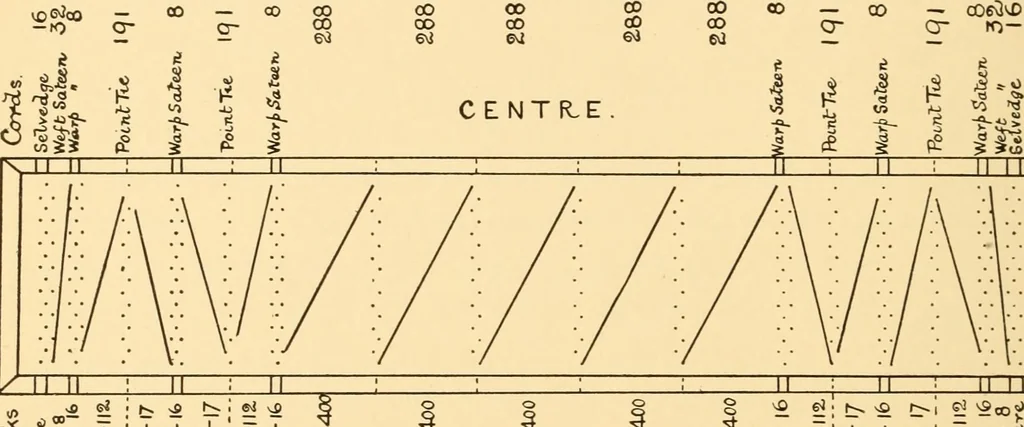

threads, and repeated three times in the centre of the cloth ;there is also a turn over side border of 240 threads. What capacityof Jacquard would be required to weave the cloth. Ans., 304. 312 JACQUARD MECHANISM AND HARNESS MOUNTING. 14.—Fig. 325 is a plan of a marked off comberboard toparticulars… … I II A Kirn rrrsi ^ ^ 6< ■ s vS N. , eJ ^ abc b c be *>: 00 0) 2 § 9 E E E 56 harness cords per inch.Fig. 325 & el; k» o r^.| c* vSoo . _ _ 1 — V) C b c b CBA 15.—What point paper would you use to paint a design fora cloth containing 80 threads to the inch in warp, and 160 threadsto the…
