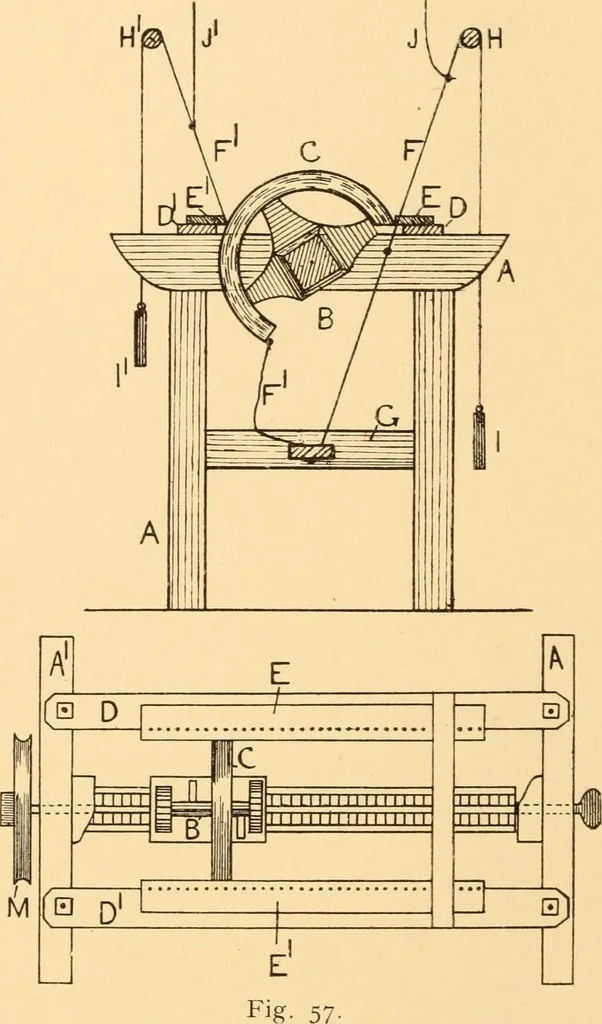

icate is indicated at a1, Fig. 57. b represents a squareprism, free to oscillate between the frame supports a.a1, c is a 52 JACQUARD MECHANISM AND HARNESS MOUNTING grooved segment pulley secured to a sliding carriage placed onthe square prism b, designed to oscillate with it, but free to bemoved… … cords f f1 are alternately passed, one end of each cord being securedto the cross rail g, whilst the other end after passing through theperforation is carried over a rod h and kept in tension by a weight 1;the rod h is suspended by cords from the ceiling. A second cord j j1connects the cords f f1…
