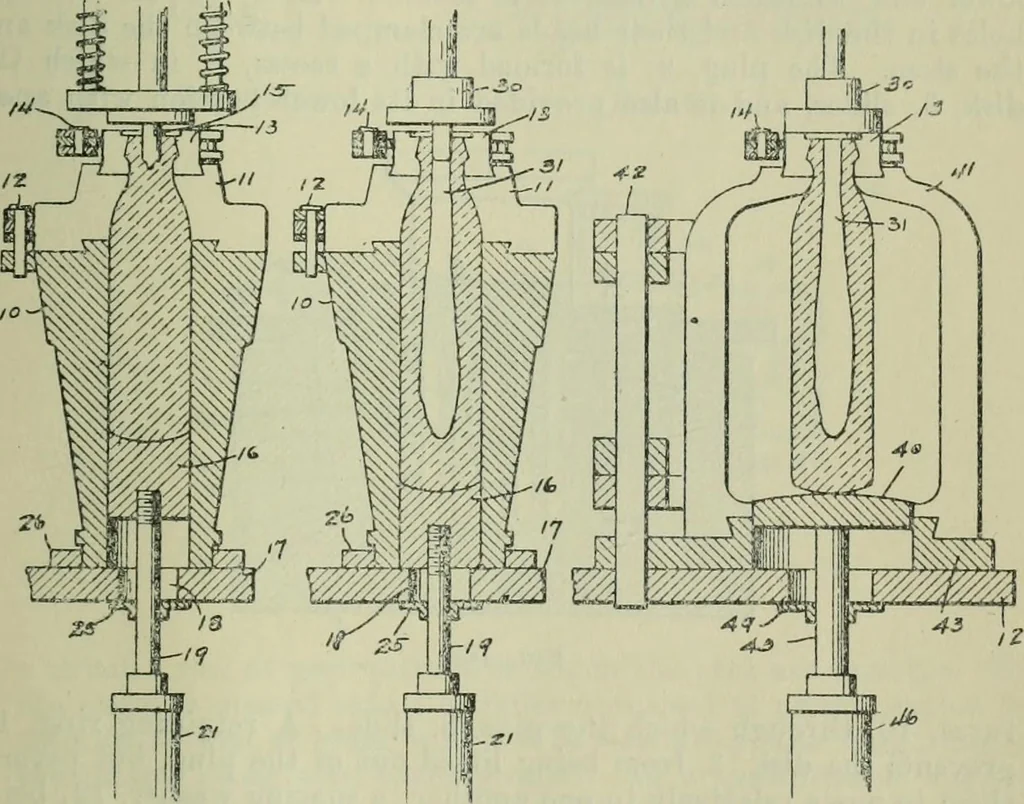

ontal axis, 19, and mounted underneath the rockershafts. S. E. 356. Blowing Large Bottles, Carboys, and the Like. J. Rau (U.S.A. Pat. No. 1292051, January 21st, 1919. FiledSeptember 28th, 1916. No. 122751).—Relates to a means of blow-ing by machine large bottles such as carboys and the like of 5… … Fig. 165. Fig. 166. Fig. 1G7. it fills the finishing mould. In applying the process to a machine,the parison mould, 10, Fig. 165, has a movable bottom, 16, whichcan be raised or lowered by a rod, 19, connected with the piston ofan air- or liquid-pressure cylinder, 21, secured below the rotarytable,…
