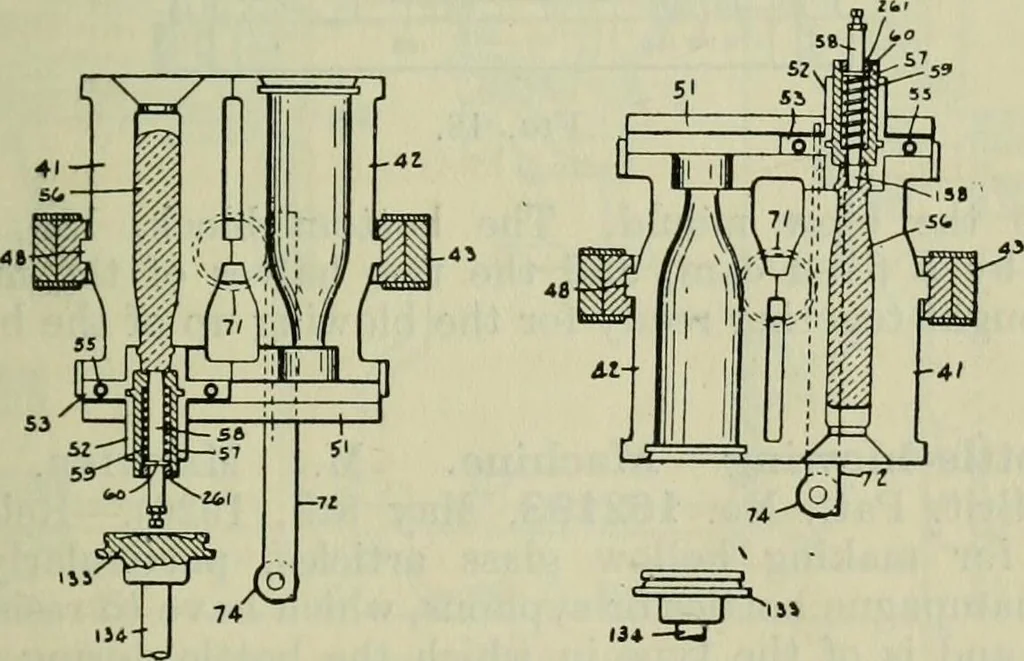

atable hollow column, 31, mounted on a stand, 32.Above an upper horizontal framework, 38, a driving wheel, 39, issecured to the upper end on the column, 31, and power from anysuitable source is transmitted through this wheel to the machine.The mould table rotates continuously, and carries six or… … Fig. 17. and one blow mould, 42, located side by side, and each of them isformed in two halves, being divided along a plane that cuts bothmoulds as shown in Fig. 17. The outer halves of these compoundmoulds are fixed to blocks fitted in the rotating frames, whilstthe other portions are fitted to…
