Society of Glass Technology · [Sheffield] · leaf 534

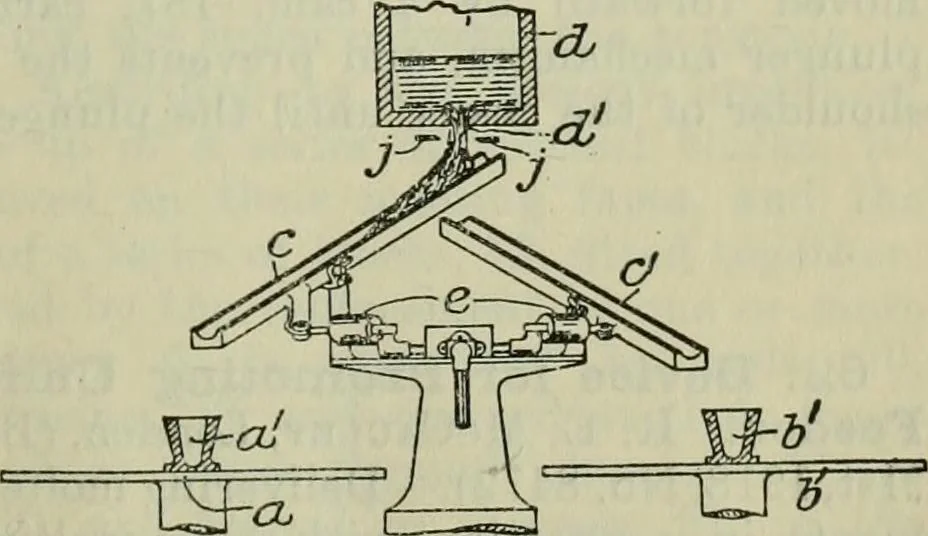

5 (Fig. 29). H. G. C. 60. Feeding Glass-making Machines. R. E. McCaulet,London. (Brit. Pat. No. 118585.) (May 31st, 1918, No. 9030).—Relates to means for conveying molten metal from the melting tankto machines, and consists of an arrangement by «—_~J3 cu which separate machinesmay be supplied in… … Fig. 30. 52 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. The shoots respectively deliver the charge to the moulds, a1, b, outhe rotary tables, a, b. In another arrangement, one of the shootsis stationary and the other is moved so as to intercept the dis-charged glass at intervals. The shoots may…
