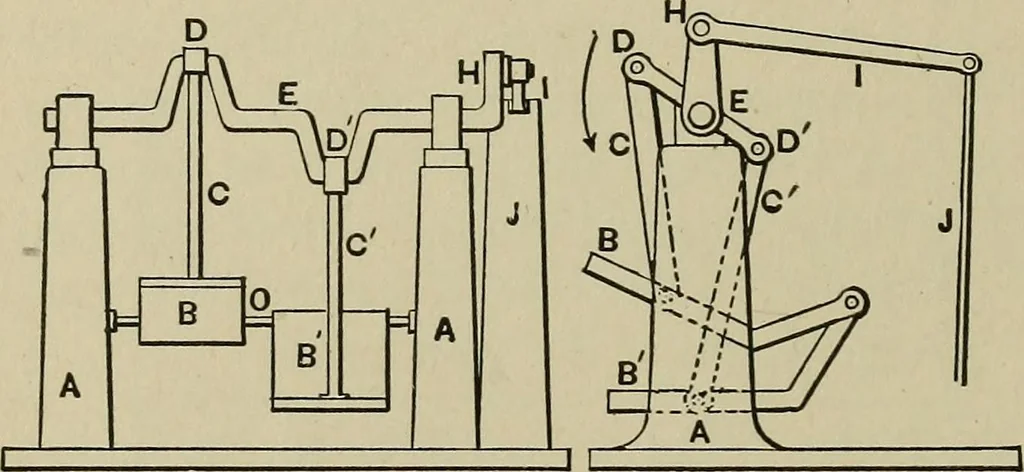

635. THREE-POINT STRAIGHT-LINELINKAGE. The radial bars are of equal length.The cross link is half the length between thefixed pivots with the tracer in its center. Thecenter and extreme points are in a straight line. 636. THE DEAD CENTER PROBLEM. Two cranks andtreadles with the driven crank at an… … 637. Side view of cranks and treadle connections.
