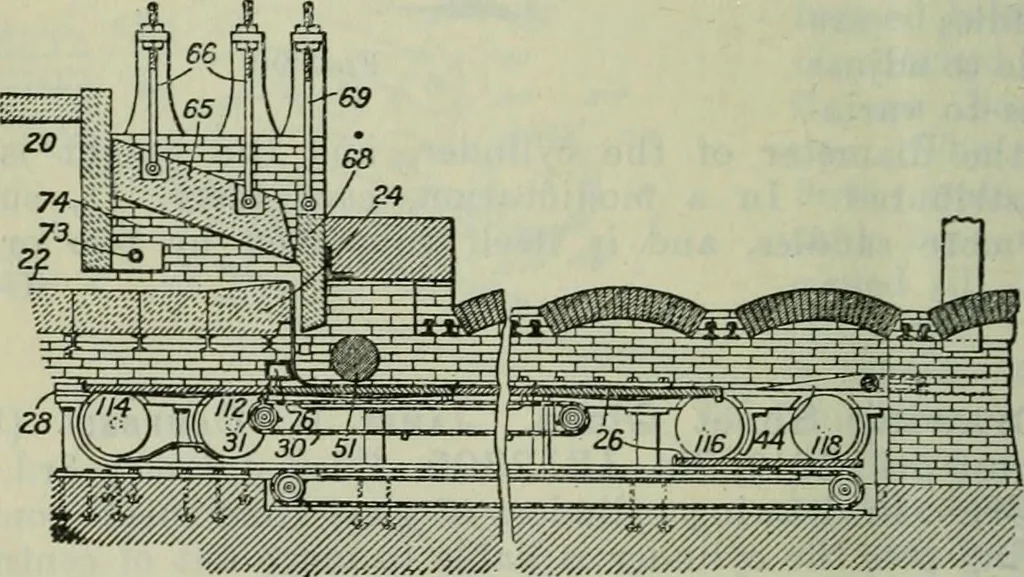

Fig. 91. 153. Making Sheet Glass. T. J. McCoy, U.S.A. (Brit. Pat.No. 132649, October 11th, 1918. No. 16591).—Relates toapparatus for making sheet glass by causing molten metal to flowin sheet form from the melting-tank on to a conveyer. In thearrangement shown in Fig. 92, the metal, 22. flows from… … Fig. 92. carry lateral pins which slide on guides, 28, and deliver the sheetto lifters, 44, from which it passes over a roller. After passingthe lifters, the tablets are moved downwards by rotary disks, 116,118, the pins sliding in guides, and are transferred to an endlesschain, 30, which returns…
