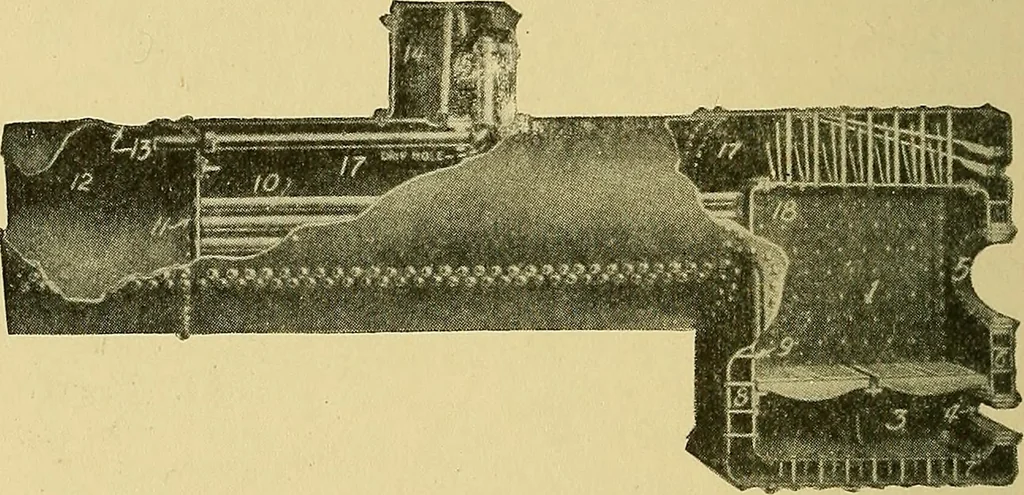

cted accordingly. Boiler. Since it is necessary to have a high-grade, durable, andeconomical boiler in order to have an efficient and reliable machine,it is thought advisable to call especial attention to the type of boil-ers used in this connection and point out some of their good and badfeatures.… … Fig. 43. Traction Boiler of the Locomotive Type tal type. The fire box i is of a horizontal rectangular constructionwith open grate bars 2 and ash pit 3, below. The fuel, either woodor coal, is fed through the fire door 5, and the ash is removed throughthe door 4- The products of combustion, such…
