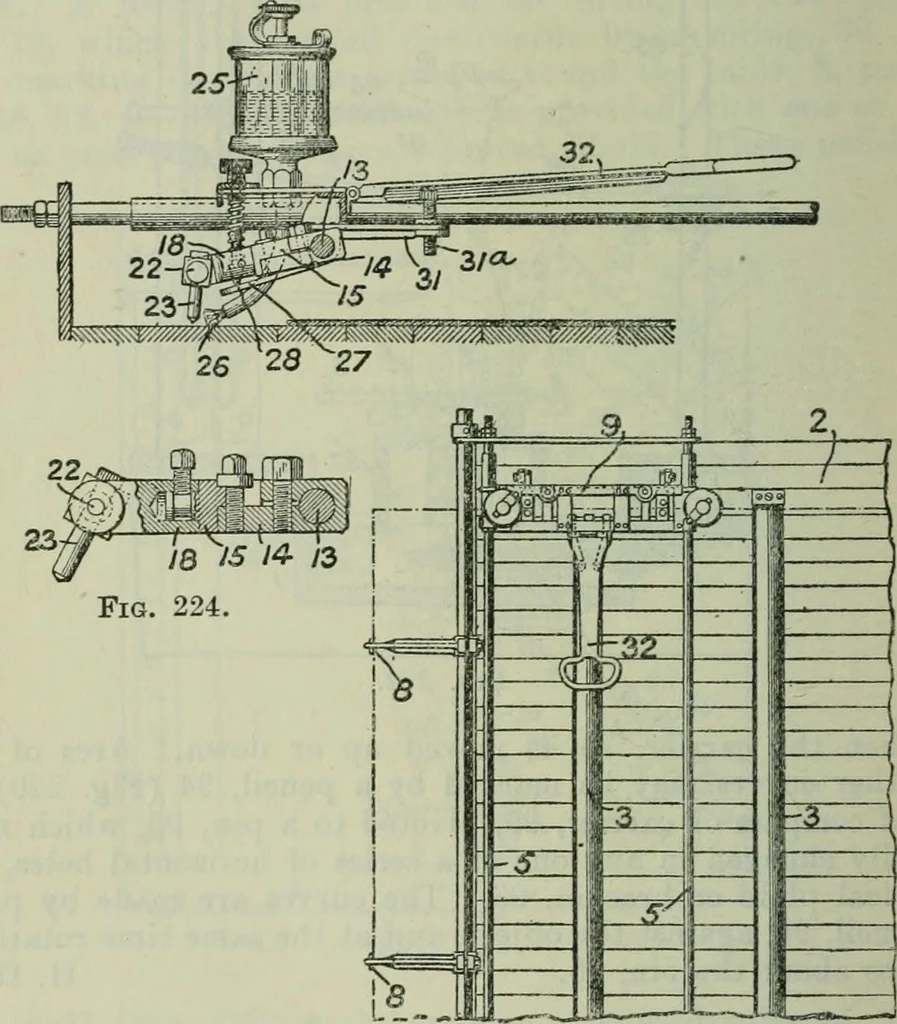

the glass on rods, 5, by a handle, 32. Eachcutter, 23 (Fig. 223), is slidably adjustable in an angularly adjust-able shaft, 22, carried by a member, 18, angularly adjustablearound an intermediate member, 15, secured to a member, 14,clamped to a spindle. 13, mounted freely for oscillation in… … Fig. 225. back into position for a subsequent cut by depression of the handle,32, acting through a bolt, 31a, carried by an arm, 31, secured tothe spindle, 13. Lubricant is passed from oil cups, 25, to theglass immediately in advance of the cutters by means of wicks, 26.A further device by the same…
Glass
