Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 384

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 384

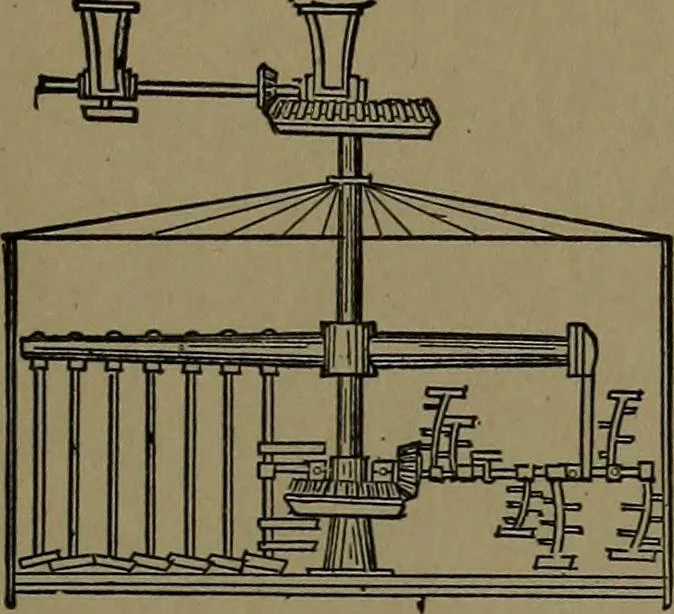

1558. WIRE-COVERING MACHINE.—The wire is passed through a hollow re-volving spindle ^, having a small longitu-dinal motion from a vibrating cam to lapthe threads. The face plate revolving withthe spindle carries two or more spools, <r, c^with guide eyes, d^ </, vibrating with thespindle.… … 1559. STIRRING MACHINE, for grain mash or other material in water.One arm carries a vertical set of armswith bottom scrapers. The other arm,a revolving shaft and arms for verticalstirring.

Mechanical movements
