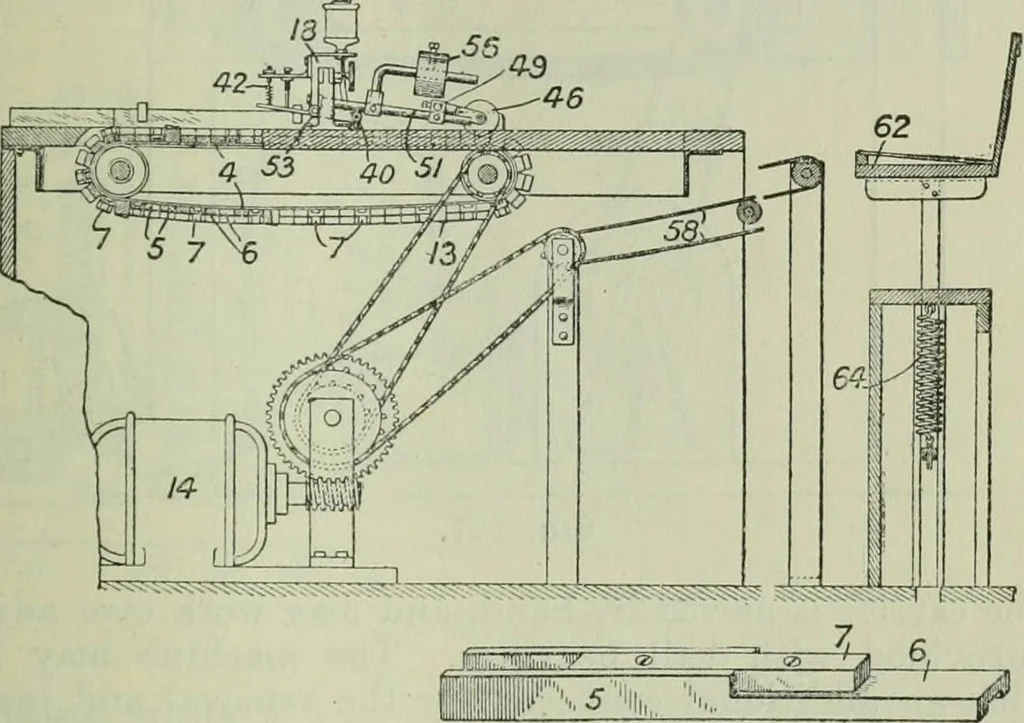

5 (Fig. 226), having reduced ends, 6,and some of which are provided with adjustable pallets, 7, furnish-ing an adjustable edge, over which the cut strip is severed by abreaker roll, 46. This roll, preferably of wood, fibre, etc., is trans-versely adjustable on a rod, 49, carried by a rod, 51,… … Fig. 228. under the action of the weight, 56, serving to detach the cut strips.The cutting or scoring tool, 40, is pivotally mounted in the sup-port, 18, and bears on the work resiliently under the action of aspring, 42. Pairs of presser rolls, carried by pivoted armsdepressed under the action of…
Glass
