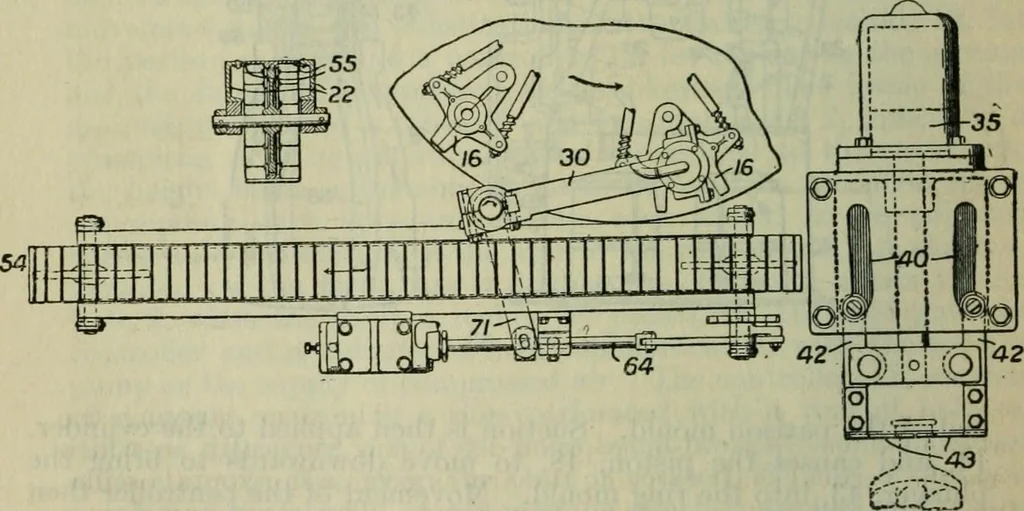

Fig. 84. matically-operated transfer mechanism for glass-blowing machinesis mounted upon a cross-arm carried by a vertical shaft which islifted and rotated pneumatically to raise the article from the mouldand deposit it on a conveyer. The take-out mechanism comprises … Fig. 85. a pair of grippers, 43, which are raised and lowered by a pneumati-cilly-operated piston, 35, and caused to engage or disengage theneck of a bottle or other article when in their lowermost positionthrough the action of levers, 42, engaging with cam slots, 40, ofthe shape shown. The…
