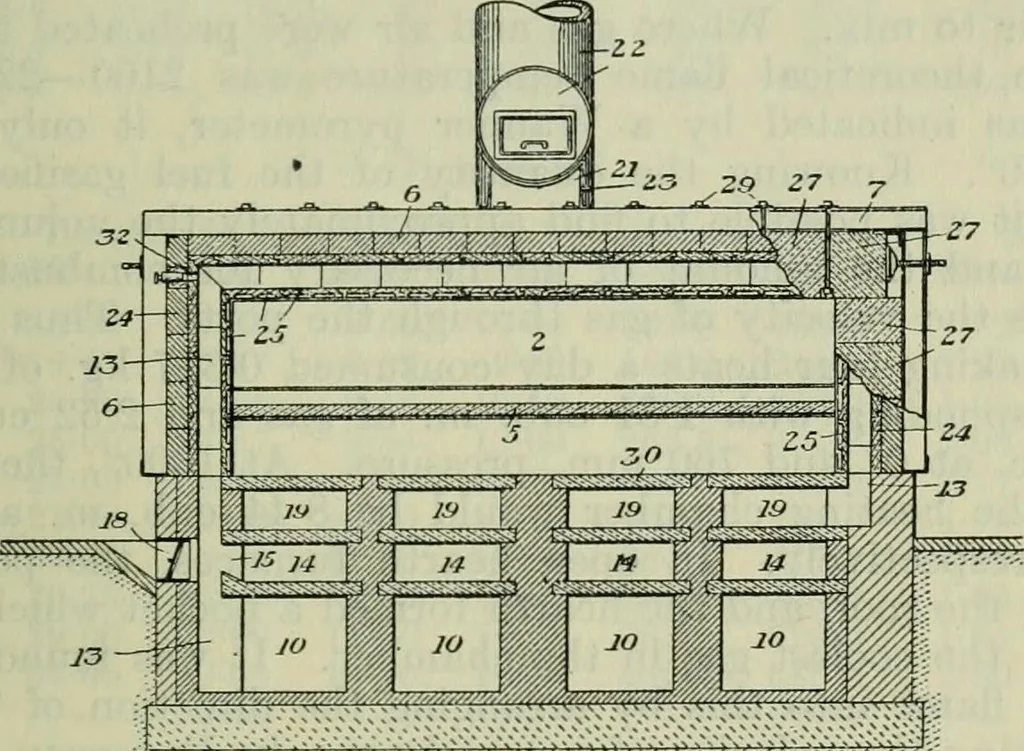

ich has an independent air inlet,controlled by a damper. The return from each flue is into one oftwo chambers, 19, which are located immediately above the flues 14.From these chambers, the hot gases are carried away by fluespassing up the sides and over the top of the annealing chamberto the stack,… … L3IS Fig. 16. walls consist of a series of tiles or slabs, 25. These slabs havebevelled edges so as to form mitre joints, and have paralleled faces,thus reducing their thickness and increasing their heat transmis-sion. The roof or arch blocks, 27, are supported from the ironframework, 7, by long…
