Society of Glass Technology · [Sheffield] · leaf 480

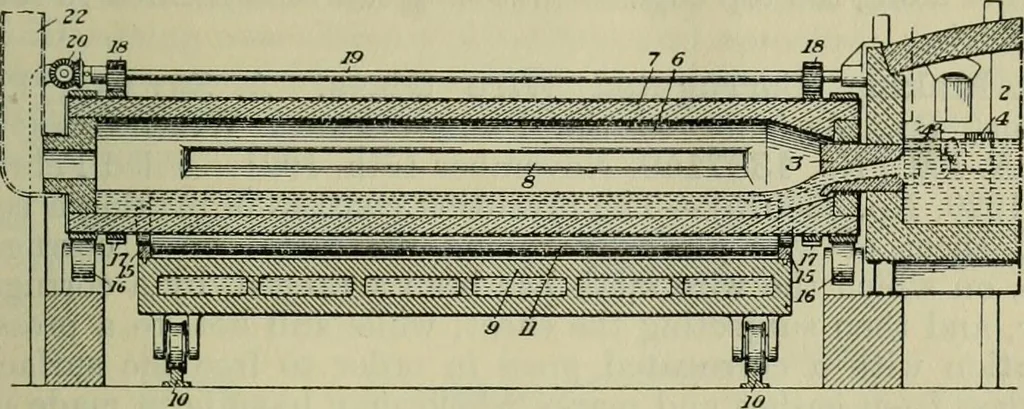

Fig. 53. MACHINERY FOR THE WORKING OF GLASS. 79 alongside and parallel with the cylinder, its bearings being arrangedto allow it to rise and fall freely. … Fig. 54. In use, metal runs from the tank into the cylinder, and whenthe proper quantity has entered, the table is started and the cylinderis turned on its axis, so that the metal runs out of the opening, 8,and is thus spread out in front of the roller. A block, 24, closesthe opening, 8, while the…
Glass
