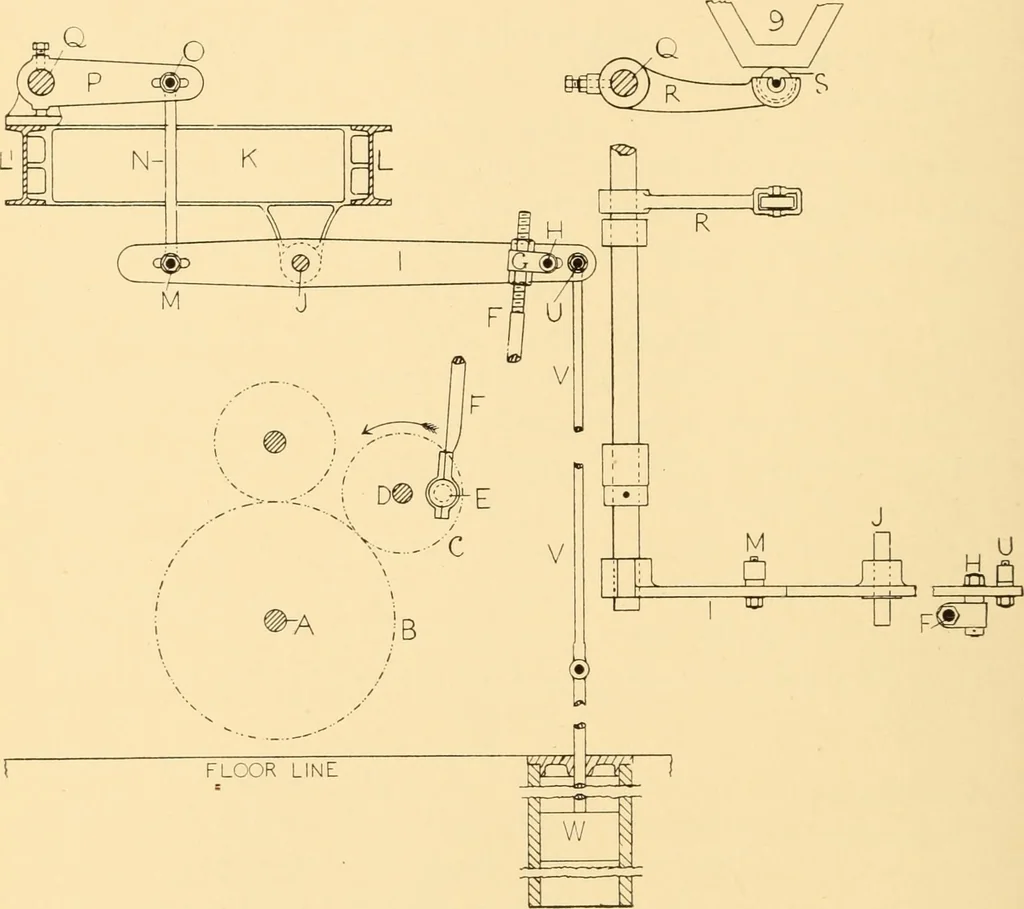

w, acting through the rod v and the stud u,upon the right arm of lever 1. With the continued rotation ofwheel c, the rod f and right arm of lever 1 are raised together with l l62 JACQUARD MECHANISM AND HARNESS MOUNTING. the weight w, while the left arm of lever I descends together withthe lever p… … Fig. 158. assists, through its connections to depress the lever p and the leftarm of lever 1 and to elevate its right arm with which ascends theweight w and conversely operates to check any rapid fall on thepart of the head 9. Single Leyer with Spiral Spring Counterpoise. This method of driving…
