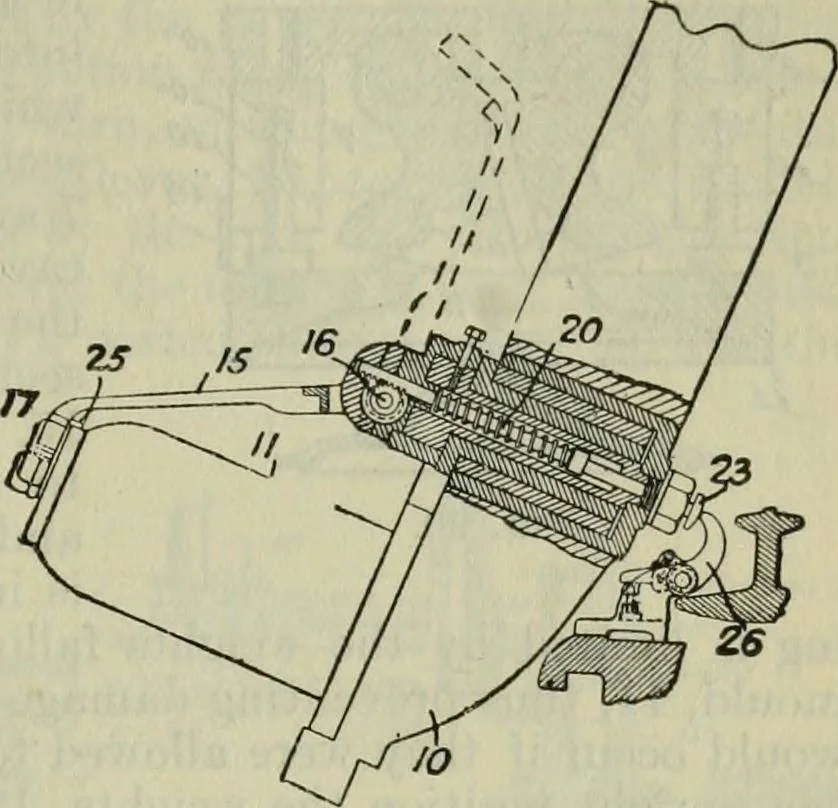

8,June 7th, 1921).—A device for ejecting or facilitating the removalof glass articles from the moulds of a forming machine, particularlya machine of the type described in Specification 165453 and 165800,comprises means for holding the glass article while the halves ofthe mould are being opened, and… … Fig. 88. struction shown, the mould, 11, is pivoted to a swinging table, 10, as described in the above-mentioned specifications, and an arm, 15, having a forked end, 17, which engages the bottle neck, is secured to a shaft, 16, which can be oscillated by a rack and pinion actuated by a…
