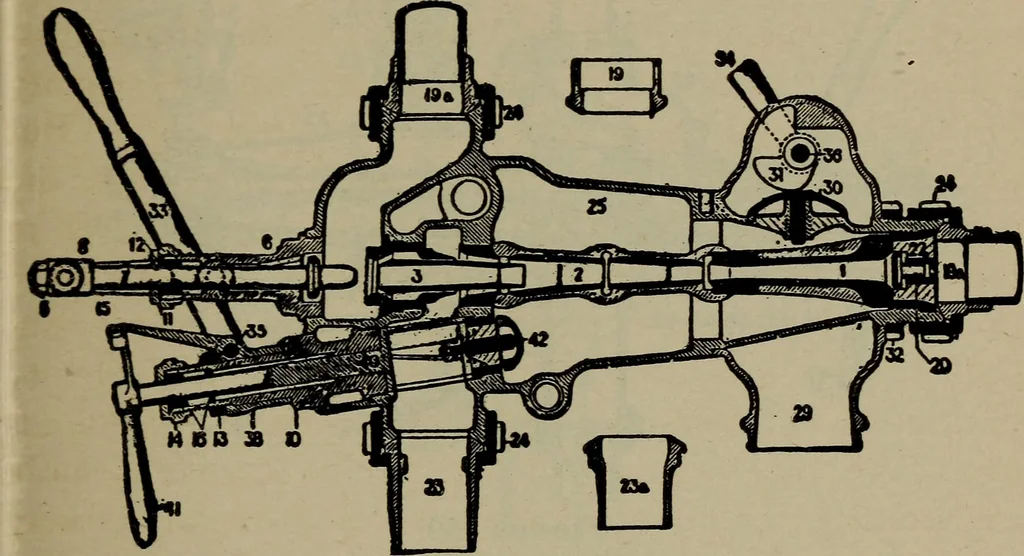

ETC. 345 matically. All the valve seats that may need refac-ing can be removed; the body is not subject to wearand will last a lifetime. The action is as follows: Steam from the boiler i>admitted to the lifting nozzle by drawing the startinglever (33) about one inch, without withdrawing theplug… … Figure 158The Self-Acting Injector, Class N Improved P. R. R. STANDARD SELLERS STANDARD FORM combining tube (2) and into the overflow chamber, liftsthe overflow valve (30), and issues from the waste pipe(29). When water is lifted the starting lever (33) isdrawn back, opening the forcing steam…
