Society of Glass Technology · [Sheffield] · leaf 589

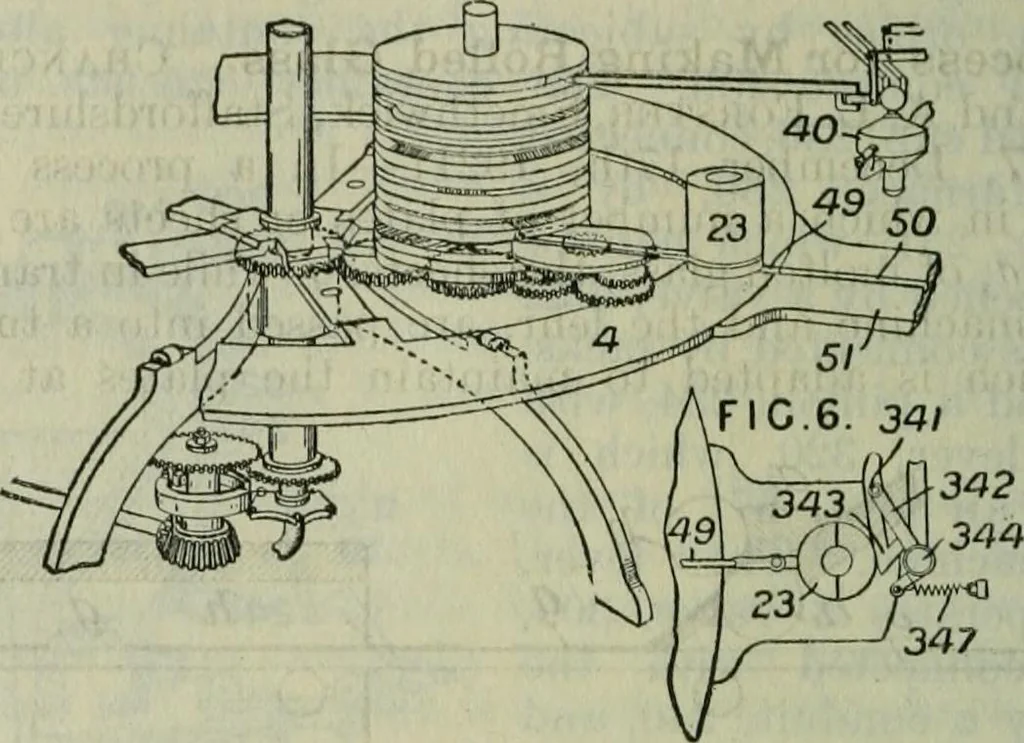

ach mould is moved outwards on to a platform, 51, beneaththe feeder, 40, slots, 49, 50, in the table and platform respectively,engaging and guiding a lug on the bottom of the mould. The 10* 144 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. feeder, 40, may be of any suitable kind, preferably that… … Fig. 100. the stream. The burner, 341, is carried by an arm, 342, pivotedat 344. When the mould, 23, is moved to receive a charge, itstrikes a finger, 343, and moves the burner away from the stream,a spring, 347, restoring the burner to its original position as soonas the mould moves back on to the…
Glass
