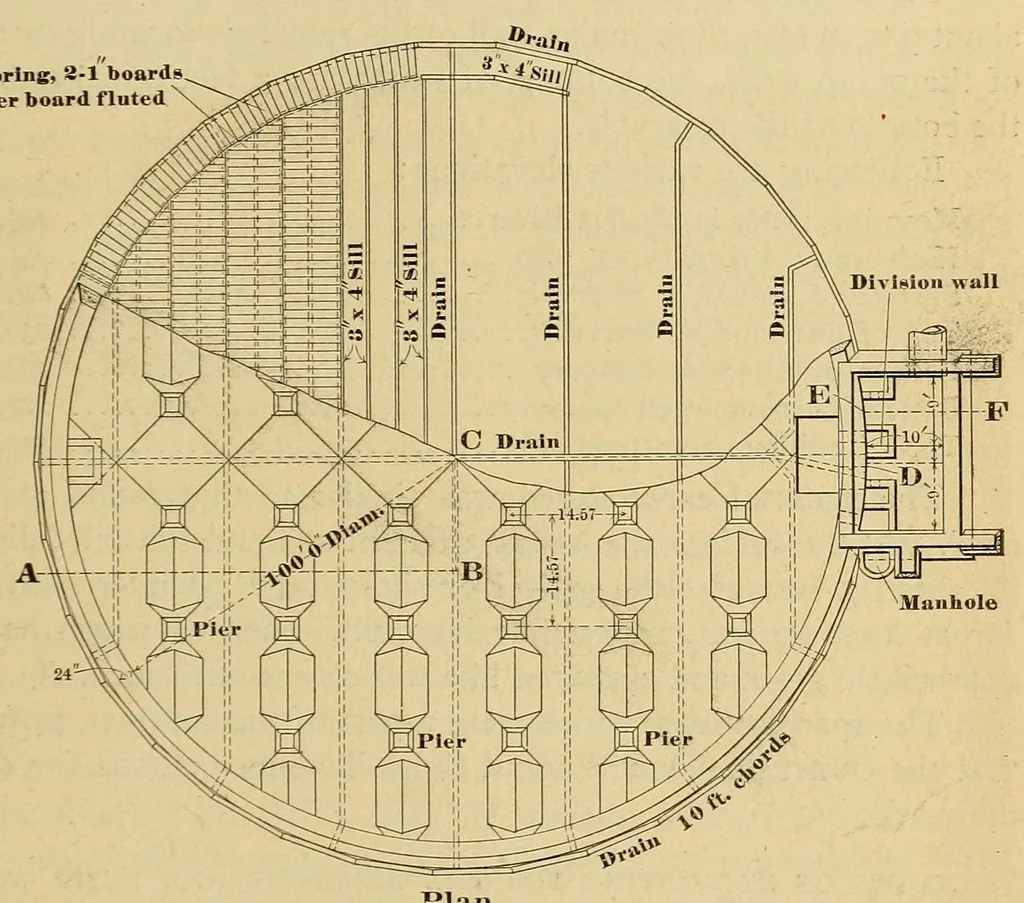

DIFFICULTIES IN BUILDING STORAGE WELL. 295 esting paper, — namely, a plentiful supply of water and very fine material. The Clinton reservoir is circular, and similar in design to the one built for the town of Concord, but considerably larger, the diameter being 100 feet, with a capacity of 669,100… … Plan Finished Surface pain I // 2-1 Boards, upper i"x I'Sills^ board fluted Section at A-B-C-D-E-F 0 123450789 1" Jietres The bottom consists of inverted segmental groined arches of concrete, which rest on a light platform built of two thicknesses of i-inch boards fastened to 3 x 4-inch sills. The…
