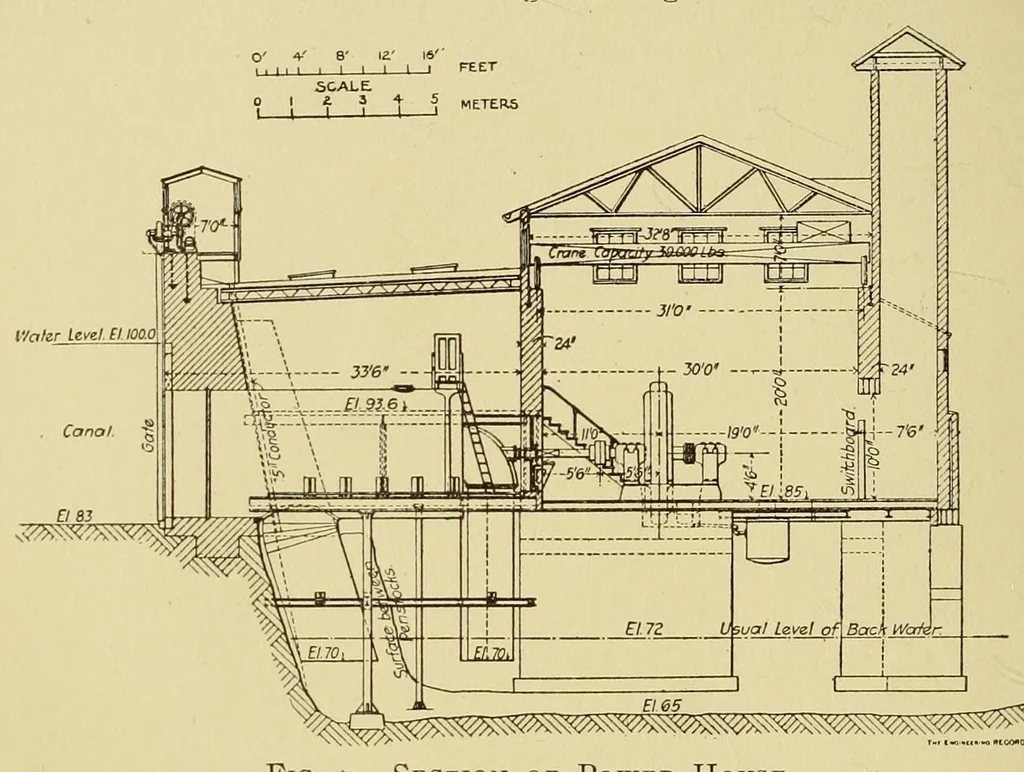

ASSOCIATION OF ENGINEERING SOCIETIES. 132 Turbines. There are 4 triplex turbines of over 1 000 h.p. and 1 small duplex one of 75 h.p. ; later two more large units will be installed, provision having been made for them. All turbines are Rodney Hunt Machine Company's make, McCormick design of runners… … Fig. 7. Section of Power House. and draft tube near the fore-bay wall; the third wheel is set opposite the quarter turn at the downstream end of casing, through which it discharges into a smaller draft tube. The draft tubes shown in the section are of equal diameter throughout their length, but…
