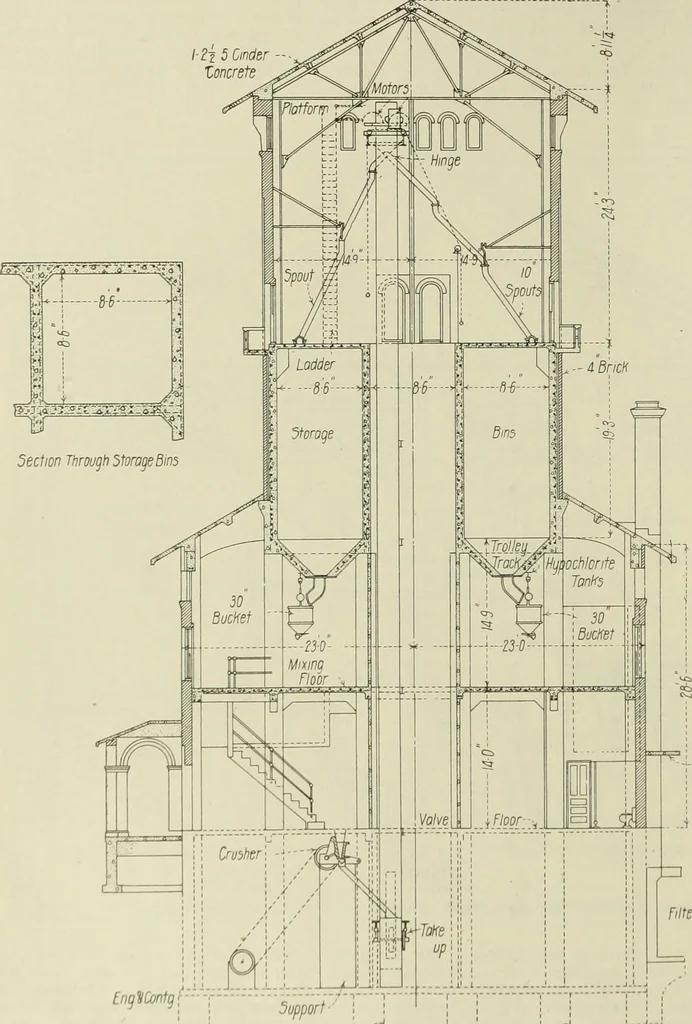

ed in a shaft locatedcentrally with respect to the bins. There areeight storage bins built of reinforced con-crete, each 8 ft. 6 ins. square on the insideand a little over 20 ft. deep. The bin bottomsare inclined at 45° and terminate in a cast-iron shoe to which cast-iron spouts are se-cured. An… … Wri foot of Filter: House Filters FngVContgi ks».J Section HP Fig. 4—Cross Section Through Tower of Head House. of the head house, with its floor on a levelwith the ground floor of the building. Thechemicals will be shipped in bulk and on be-ing unloaded from the car will be spoutedinto an elevator…
