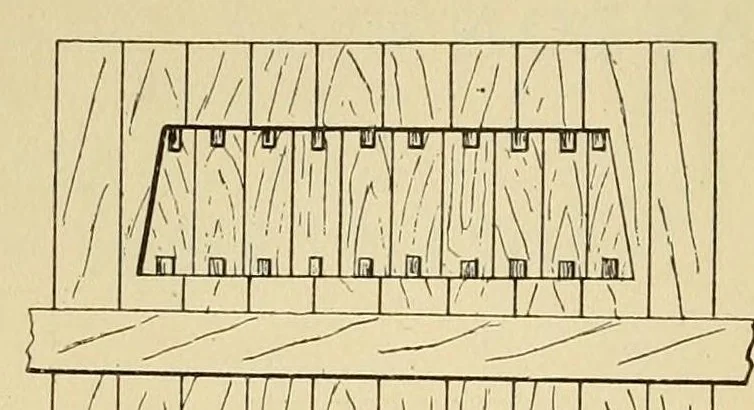

ASSOCIATION OF ENGINEERING SOCIETIES. 62 across the shaft which interfered with the legs of the first cap, an opening was cut across them large enough for the legs to … i i( 9 1 [) i \ in Fig. 2. The first frame, consisting 1 \ of a cap and legs, was set up 1 I against the bulkhead.' The Fig. 1. dimensions of these timbers are given in Fig. 3. The lengths of the legs, however, were altered from time to time, as necessary, the idea being to get the founda- Fig. 2.…
