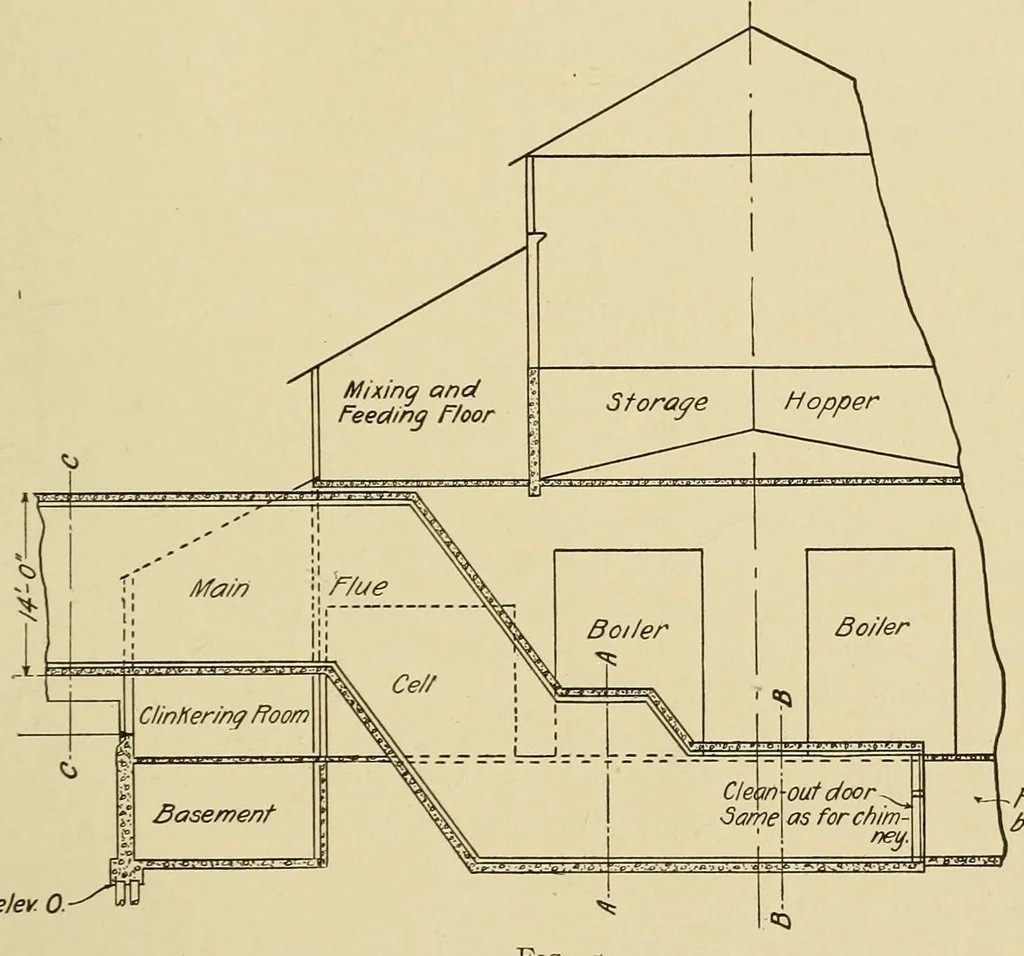

rates. The combustion chamber will extend down to the basement floor, 8 ft. below the ash pit. The boilers will be of the horizontal water tube type, set high, with a tubular air heater set below the tubes in the second pass of each boiler. Each of the four boilers will have a rated capacity of 200… … Fig. 5. The fans and fan engines will stand on a floor raised about 5 ft. above the clinkering floor and located at the center of the building. There will be a fan and fan engine for each unit. Forty-eight inch Sirocco fans direct connected to 5 -in. A, B, C vertical engines will be installed.…
