Common-sense stair building and handrailing (1903)
Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 117

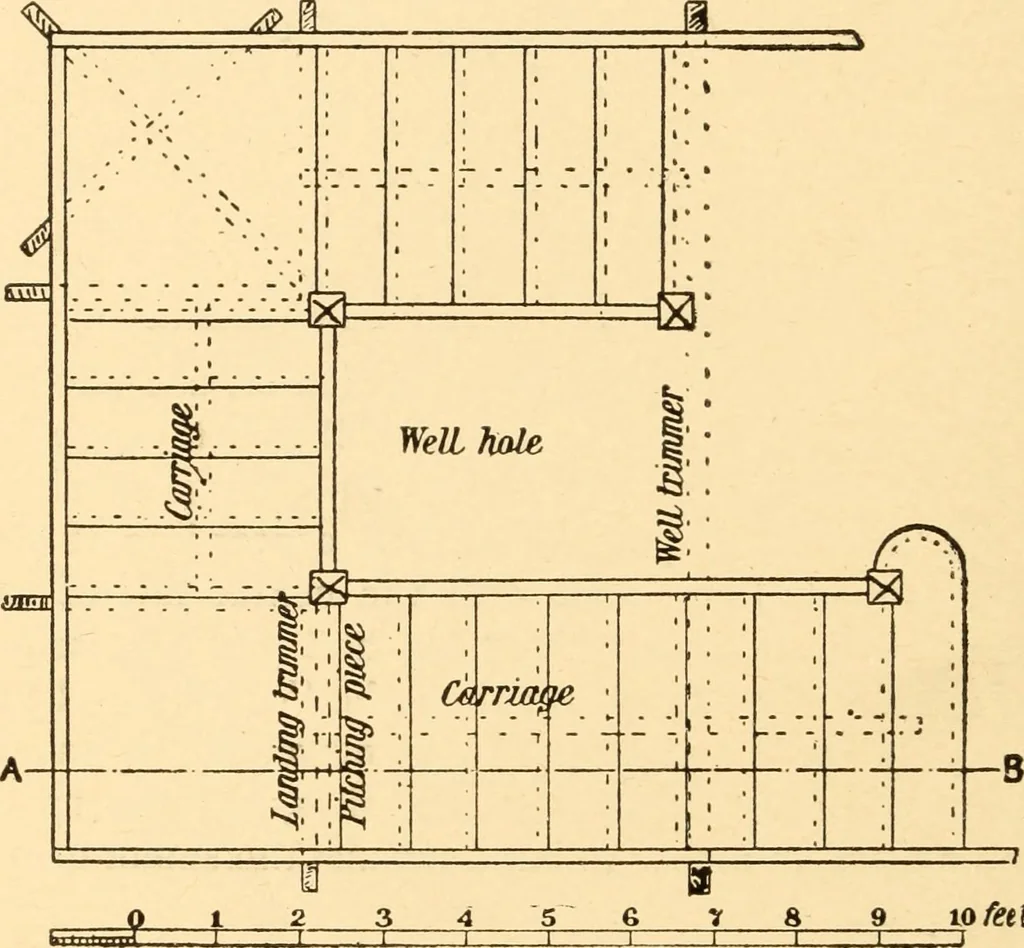

e lines of risers; while the treads are shown bycomplete lines. It will be noticed that the strings andtrimmers of the first landi.ig are framed into the shank no COMMON-SENSE HANDRAILTNG of the second newel post which runs down to the floor,while the third newel drops below the apron and has… … to feet Fig. 3. is shown both in landings and run of stairs, the pro-jecting ends of timbers are supposed to be resting onthe wall. A scale of the plan and elevation is attachedto plan. Fig. 4 shows the elevation in full with a story rodshown on the right, with the number of risers spaced FOURTH…
Stair building · Hand-railing
