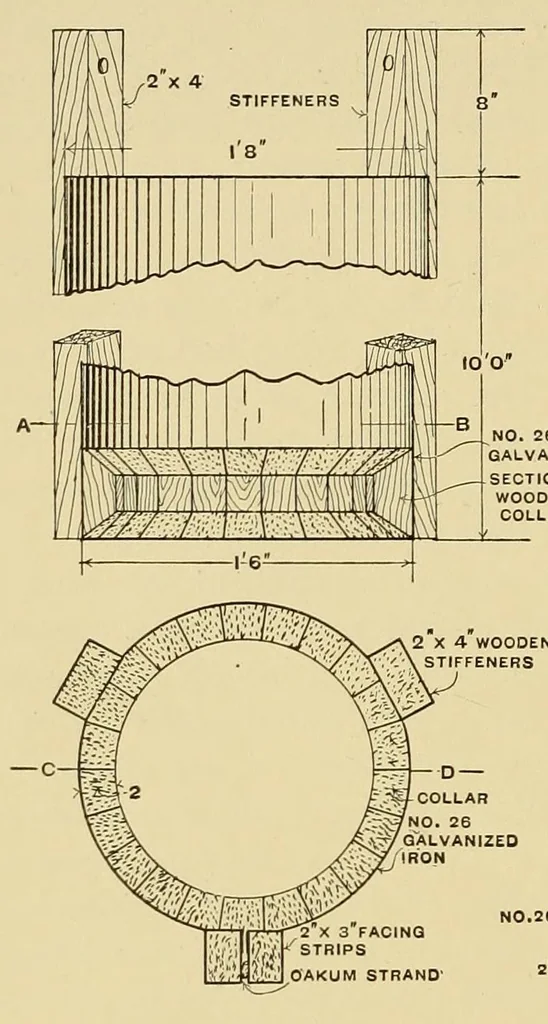

102 ASSOCIATION OF ENGINEERING SOCIETIES. of mortar. Two 2-in. by 4-in. stiffeners of same length as the facing strips were fastened to the form at the one-third point as shown in the cut, Fig. 1. A collar of 2-in. stock made from narrow blocks was provided at the foot to serve as a gage for… … SECTIONS OF PILE- REINFORCEMENT FORMS VERTICAL SECTION ON C-D HORIZONTAL SECTION ON A-B }4 ELEVATION Fig.1 X SECTION SHOWING SHOWING % COMPLETED WORK CONSTRUCTION Fig. 2 regulating the thickness of the mortar, as well as serving to calk against in closing the foot against the escape of the mortar.…
