The car wheel; giving the results of a series of investigations (1907)

Fowler, George Little, 1855-1926 · Pittsburgh, Pa., Schoen Steel Wheel Co. · leaf 15

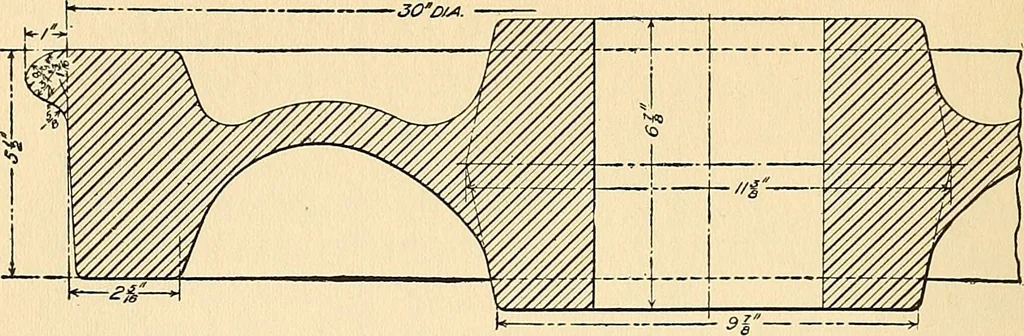

An illustration from The car wheel; giving the results of a series of investigations, 1907, leaf 15 — e details of the dimensions of car wheels varywith the requirements of the railroads using them.There is a wide difference of opinion as to the bestproportions for the thickness of the rim, while thedish and length of hub are determined to a greatextent by the details of truck construction. This… … SOLID FORGED AND ROLLED STEEL WHEEL FOR ENGINE TRUCK.
