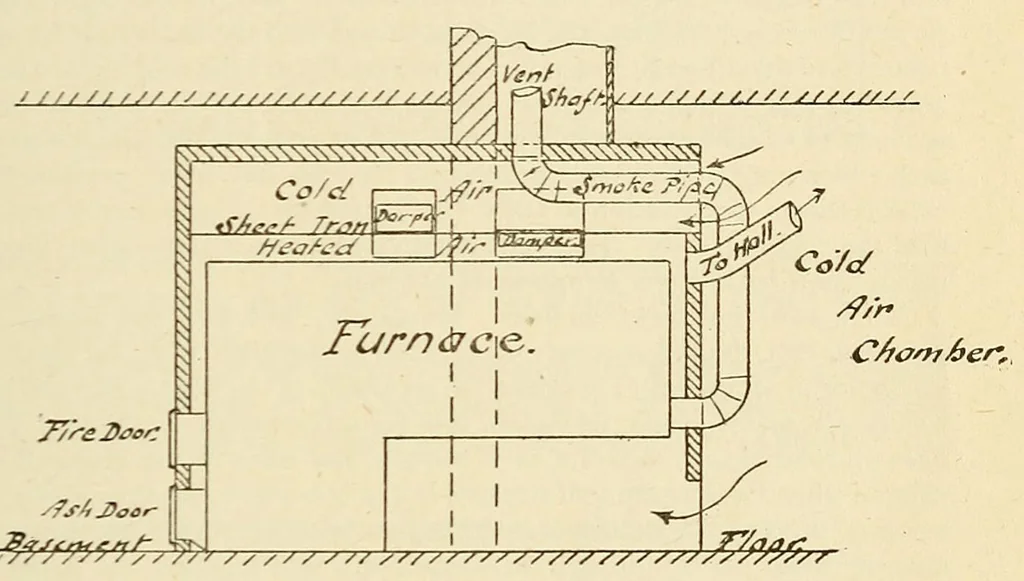

ly upon such a furnace as this to heat a larger space nor a greater air volume than would be required by ioo scholars. I think that it would provide liberally for what would be required by that number. Let me go through an explanation of these figures in order that you may under- stand the plan… … F/g.3. point which may have escaped attention in looking at the model, and that is that the smoke vent is so placed as to take the cooler gases from the combustion chamber. The furnace is placed in a case, such as you may perhaps see to better advantage in Fig. 3. The cold air passes into the…
